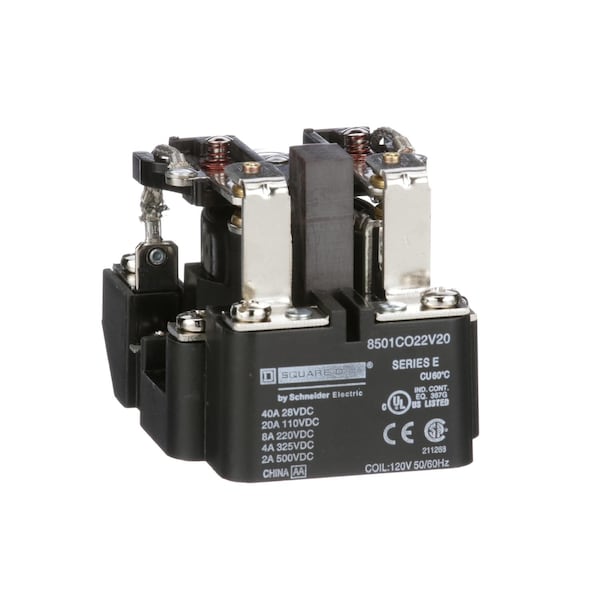

Relevador, 120V AC volts en bobina, 2 NC/2 NA; DPDT.
| Item | Relay |
|---|---|
| Coil Volts | 120V AC |
| Contact Form - Relay | 2 NO/2 NC; DPDT |
| Mounting - Relay | Panel Mount |
| Power Consumption - Relay | 10 VA |
| Body Height - Relay | 3.12 in |
| Body Width - Relay | 2-1/2 in |
| Body Depth - Relay | 2.53 in |
| Standards | UL listed file E78351 CCN NLDX; CSA; CE |
| Width | 2-1/2 in |
| Operating Temp. Range | -22-122°F |
| Current Rating | 20 A |
| Series | type C |
| Switching Voltage | 325 V DC |
| Status Indicator | No Indicator |
| Range of Product | Power Relay 8501C |
| Hold-In Power Consumption In Va | 10-10 VA |
| Awg Gauge | AWG 10 copper |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
| Connections - Terminals | screw clamp terminal |
| Switch Function | DPDT |
| Tightening Torque | 11-15 lbf.in |
| Device Application | suited for controlling small single phase motors and other light loads |
| Contacts Type And Composition | 2 NO, 2 NC |
| Ambient Air Temperature For Operation | -22-122°F |
| Phase | 1 phase |
| Mounting Support | panel mounting |
| Product or Component Type | power relay |
| Package Quantity | 1 |
