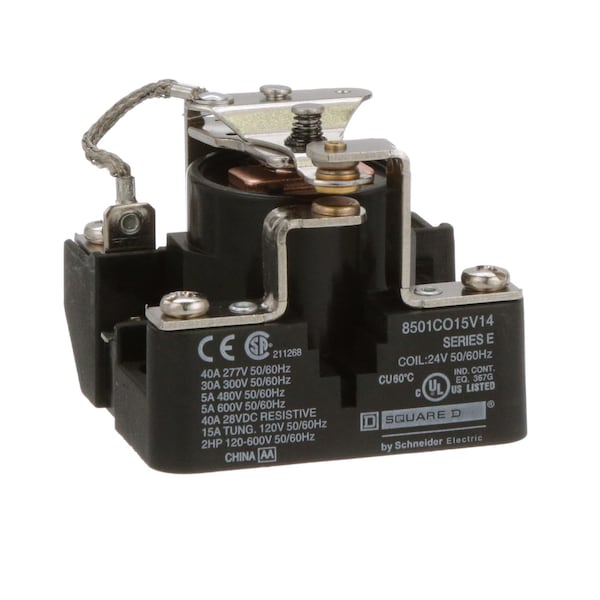

Relevador, 600V en voltaje de bobina, 1 contacto normalmente abierto/1 contacto normalmente cerrado; un polo doble tierra.
| Item | Relay |
|---|---|
| Coil Volts | 600VAC |
| Contact Form - Relay | 1 NO/1 NC; SPDT |
| Mounting - Relay | Panel Mount |
| Power Consumption - Relay | 10 VA |
| Body Height - Relay | 2.43 in |
| Body Width - Relay | 2-1/2 in |
| Body Depth - Relay | 2.18 in |
| Standards | UL listed file E78351 CCN NLDX; CSA; CE |
| Height | 2.43 in |
| Width | 2-1/2 in |
| Depth | 2.18 in |
| Operating Temp. Range | -22-122°F |
| Series | type C |
| Current Rating | 30 A |
| Switching Voltage | 600 V AC |
| Wire Range | AWG 10 copper |
| Mounting | Panel |
| Horsepower Rating | 2.0 hp |
| Terminal Tightening Torque | 11 to 15 lbf.in (1.24 to 1.69 N.m) |
| Phase | 1 phase |
| Terminal Connects | Screw clamp terminal |
| Control Circuit Voltage | 24 V AC 50/60 Hz |
| Ambient Temperature Range - Operational | -22 to 122°F (-30 to 50°C) |
| Contact Composition | 1 NO/1 NC |
| Class Number | 8501 |
| Product Type | Power relay |
| Switch Function | SPDT |
| Device Application | Suited for controlling small single phase motors, other light loads |
| Status Indicator | No Indicator |
| Tightening Torque | 11-15 lbf.in |
| Range of Product | Power Relay 8501C |
| Ambient Air Temperature For Operation | -22-122°F |
| Hold-In Power Consumption In Va | 10-10 VA |
| Package Quantity | 1 |
