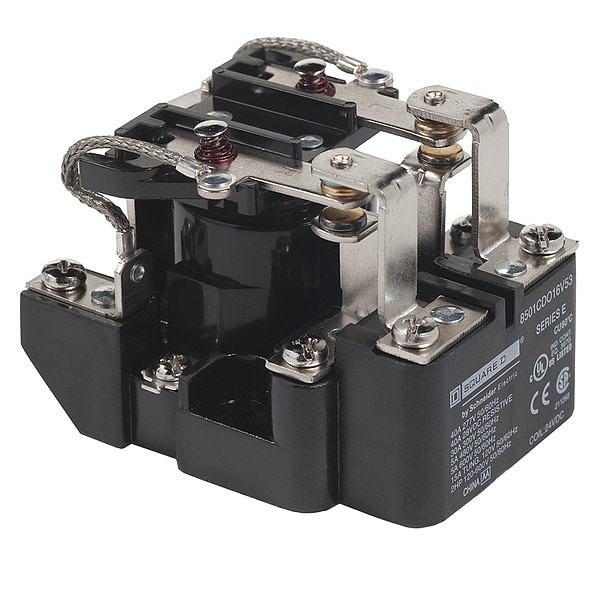

Relevador, 600VCA de voltaje de bobina, 2 contactos normalmente abiertos/2 contactos normalmente cerrados; de doble polo, doble tiro (DPDT)
| Item | Relay |
|---|---|
| Coil Volts | 600VAC |
| Contact Form - Relay | 2 NO/2 NC; DPDT |
| Mounting - Relay | Panel Mount |
| Power Consumption - Relay | 10 VA |
| Body Height - Relay | 3.12 in |
| Body Width - Relay | 2-1/2 in |
| Body Depth - Relay | 2.31 in |
| Standards | UL listed file E78351 CCN NLDX; CSA; CE |
| Series | type C |
| Operating Temp. Range | -22-122°F |
| Current Rating | 30 A |
| Switching Voltage | 600 V AC |
| Status Indicator | No Indicator |
| Package Quantity | 1 |
