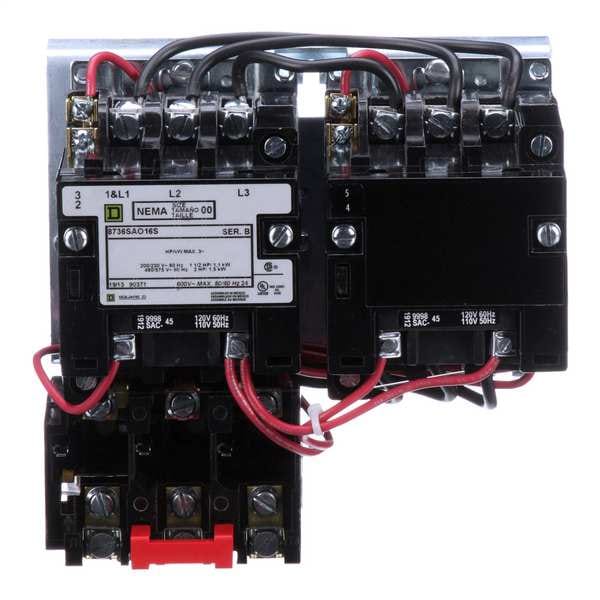

Arrancador magnético de motor con inversión, sin envolvente NEMA, 120V CA, 3 polos, sin contactos auxiliares.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | No Auxiliary Contacts |
| HP @ 3 Phase - 240V | 1.5 HP |
| Starter Type | No Enclosure |
| Action | Reversing |
| Amps AC | 9 A |
| NEMA Size | 0 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 2 HP |
| HP @ 3 Phase - 208V | 1.5 HP |
| Depth | 5.31 in |
| Hz | 50/60 |
| Standards | CSA, UL Listed |
| Thermal Unit Code | B |
| HP @ 3 Phase - 575V | 2 hp |
| Height | 6.91 in |
| Accessory Group | D1 |
| Width | 7.13 in |
| Enclosure Type | Open |
| Operating Voltage | 600V AC |
| Minimum Overload Relay Current Setting | Not Applicable |
| Operator | None |
| Maximum Overload Relay Current Setting | Not Applicable |
| Overload Protection Type | Thermal |
| Horsepower @ Three Phase - 240V AC | 1.5 HP |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 480V AC | 2 HP |
| Horsepower @ Three Phase - 600V AC | 2 HP |
| Operator Function | Not Applicable |
| Current AC | 9 A |
| Reversing Capability | Reversing |
| Maximum Voltage Rating | 600 V AC |
| Frequency | 50/60 Hz |
| Coil Voltage | 110/120V AC |
| Overall Depth | 5.31 in |
| Terminal Connection Type | Screw Clamp Terminals |
| Includes Auxiliary Contacts | No |
| Starter Style | NEMA |
| Overall Height | 6.91 in |
| Includes Pilot Light | No |
| Phase | Three |
| Overall Width | 7.13 in |
| Number of Auxillary Contacts | 0 |
| Horsepower @ Three Phase - 208V AC | 1.5 HP |
| Package Quantity | 1 |
