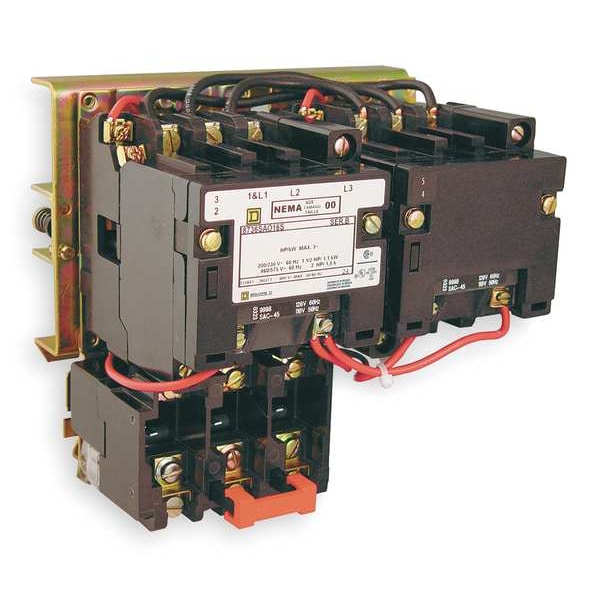

Arrancador magnético reversible, sin gabinete clasificación NEMA, 120V CA, 3 polos, sin contactos auxiliares.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | No Auxiliary Contacts |
| HP @ 3 Phase - 240V | 15 HP |
| Starter Type | No Enclosure |
| Action | Reversing |
| Amps AC | 45 A |
| NEMA Size | 2 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 25 HP |
| Accessory Group | D4 |
| Thermal Unit Code | D4 |
| Width | 6-3/4 in |
| Height | 13.48 in |
| Includes | Melting Alloy Thermal Overload Relay and Instantaneous Magnetic Trip Mechanism |
| Standards | CSA, UL Listed |
| Hz | 50/60 |
| HP @ 3 Phase - 575V | 25 hp |
| Depth | 6.03 in |
| HP @ 3 Phase - 208V | 10 HP |
| Enclosure Type | Open |
| Operating Voltage | 600V AC |
| Operator Function | Not Applicable |
| Series | 8536 |
| Minimum Overload Relay Current Setting | Not Applicable |
| Starter Style | NEMA |
| Terminal Connection Type | Screw Clamp Terminals |
| Coil Voltage | 120V AC |
| Includes Auxiliary Contacts | No |
| Reversing Capability | Reversing |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Maximum Voltage Rating | 600 V AC |
| Number of Auxillary Contacts | 0 |
| Maximum Overload Relay Current Setting | Not Applicable |
| Includes Pilot Light | No |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Horsepower @ Three Phase - 480V AC | 25 HP |
| Mounting Postion | Horizontal |
| Operator | None |
| Overall Height | 8-1/2 in |
| Overload Protection Type | Thermal |
| Current AC | 45 A |
| Overall Depth | 6.03 in |
| Frequency | 50/60 Hz |
| Overall Width | 9 in |
| Phase | Three |
| Wiring Mode | 3 wires |
| Control Units | No control units |
| Type Of Overload | Melting alloy 3 |
| Short Circuit Current Rating | 5 kA to 600 V AC (Circuit-breaker), 5 kA to 600 V AC (Fuse) |
| Control Circuit Type | Separate control circuit |
| Horsepower Rating | 10 HP 200 V AC; 15 HP 230 V AC; 25 HP 460 V AC; 25 HP 575 V AC |
| Auxiliary Contacts | Without |
| Certifications | UL Listed |
| Pilot Light | Without pilot light |
| Package Quantity | 1 |
