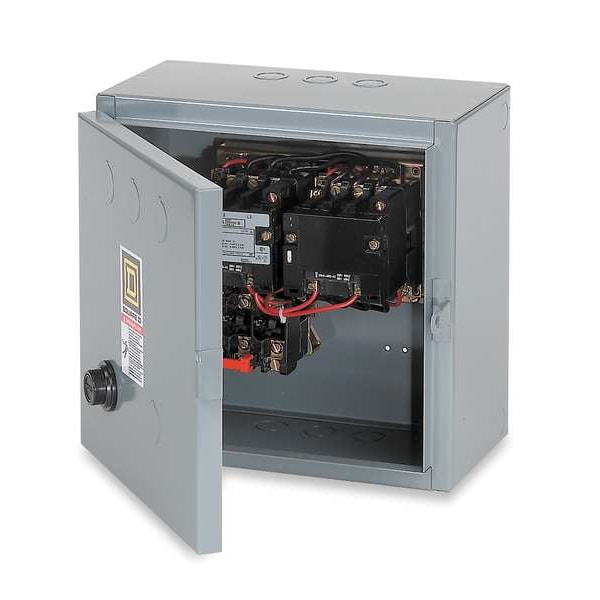

Arrancador magnético de motor NEMA con marcha atrás, Clasificación NEMA 1, 480V AC, 3 Polos, 1NC
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 6 to 18 A |
| Coil Volts | 480V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 3 HP |
| Starter Type | NEMA Style |
| Action | Reversing |
| Amps AC | 18 A |
| NEMA Size | 0 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 5 HP |
| Depth | 7.53 in |
| Includes | Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism |
| Width | 11.88 in |
| Features | Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism |
| Standards | CSA, UL Listed |
| Height | 11.88 in |
| HP @ 3 Phase - 575V | 5 hp |
| HP @ 3 Phase - 208V | 3 HP |
| Hz | 50/60 |
| Enclosure Type | Painted Steel Sheet |
| Thermal Unit Code | Not Applicable |
| Operating Voltage | 600V AC |
| Number of Auxillary Contacts | 0 |
| Phase | Three |
| Reversing Capability | Reversing |
| Series | 8536 |
| Current AC | 18 A |
| Operator Function | Not Applicable |
| NEMA Enclosure Rating | 1 |
| Overload Protection Type | Electronic |
| Overall Depth | 7.53 in |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Frequency | 50/60 Hz |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Height | 11.88 in |
| Trip Class | 10/20 |
| Starter Style | NEMA |
| Includes Auxiliary Contacts | No |
| Maximum Voltage Rating | 600 V AC |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Coil Voltage | 480V AC |
| Auxiliary Contact Module Capacity | 1 |
| Mounting Postion | Horizontal |
| Includes Pilot Light | No |
| Minimum Overload Relay Current Setting | 6 A |
| Operator | None |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Maximum Overload Relay Current Setting | 18 A |
| Overall Width | 11.88 in |
| Certifications | UL Listed |
| Wiring Mode | 3 wires |
| Auxiliary Contacts | Without |
| Control Circuit Type | Common control circuit |
| Short Circuit Current Rating | Circuit-breaker 70 A maximum: 100 kA at 480 V AC; Fuse J 60 A maximum: 100 kA at 600 V AC; Fuse T 60 A maximum: 100 kA at 600 V AC; Fuse RK1 60 A maximum: 100 kA at 600 V AC; Fuse RK5 60 A maximum: 100 kA at 600 V AC |
| Pilot Light | Without pilot light |
| Type Of Overload | Solid state Motor Logic class 10/20 |
| Control Units | No control units |
| Horsepower Rating | 3 HP 200 V AC; 3 HP 230 V AC; 5 HP 460 V AC; 5 HP 575 V AC |
| Package Quantity | 1 |
