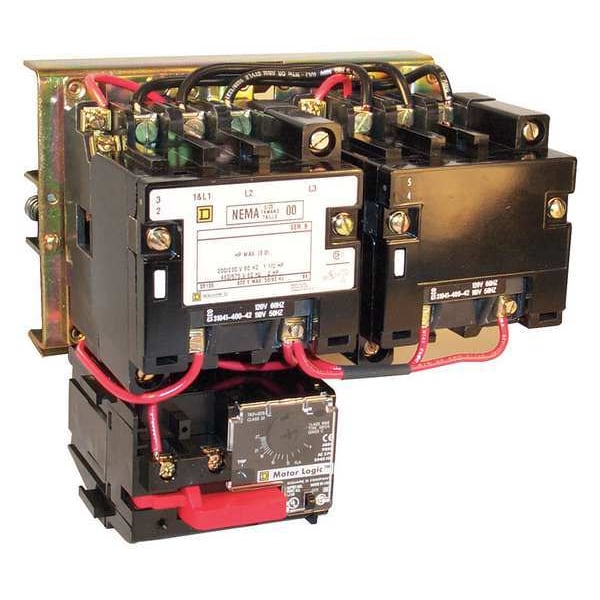

Arrancador magnético de motor NEMA de reversión, sin gabinete de clasificación NEMA, 120V CA, 3 polos, 1 contacto normalmente abierto.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 3 to 9 A |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 1.5 HP |
| Starter Type | NEMA Style |
| Action | Reversing |
| Amps AC | 9 A |
| NEMA Size | 0 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 2 HP |
| Width | 7.13 in |
| Includes | Class 10/20 selectable solid state overload relay |
| Hz | 50/60 |
| Height | 6.91 in |
| Standards | CSA, UL Listed |
| HP @ 3 Phase - 575V | 2 hp |
| HP @ 3 Phase - 208V | 1.5 HP |
| Features | Class 10/20 Selectable Solid State Overload Relay |
| Depth | 5.31 in |
| Thermal Unit Code | Not Applicable |
| Enclosure Type | Open |
| Operating Voltage | 600V AC |
| Horsepower @ Three Phase - 480V AC | 2 HP |
| Coil Voltage | 110/120V AC |
| Includes Pilot Light | No |
| Overall Height | 6.91 in |
| Trip Class | 10/20 |
| Phase | Three |
| Number of Auxillary Contacts | 0 |
| Minimum Overload Relay Current Setting | 3 A |
| Starter Style | NEMA |
| Frequency | 50/60 Hz |
| Terminal Connection Type | Screw Clamp Terminals |
| Operator | None |
| Horsepower @ Three Phase - 240V AC | 1.5 HP |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 208V AC | 1.5 HP |
| Reversing Capability | Reversing |
| Operator Function | Not Applicable |
| Overload Protection Type | Electronic |
| Horsepower @ Three Phase - 600V AC | 2 HP |
| Includes Auxiliary Contacts | No |
| Maximum Voltage Rating | 600 V AC |
| Maximum Overload Relay Current Setting | 9 A |
| Current AC | 9 A |
| Overall Depth | 5.31 in |
| Overall Width | 7.13 in |
| Package Quantity | 1 |
