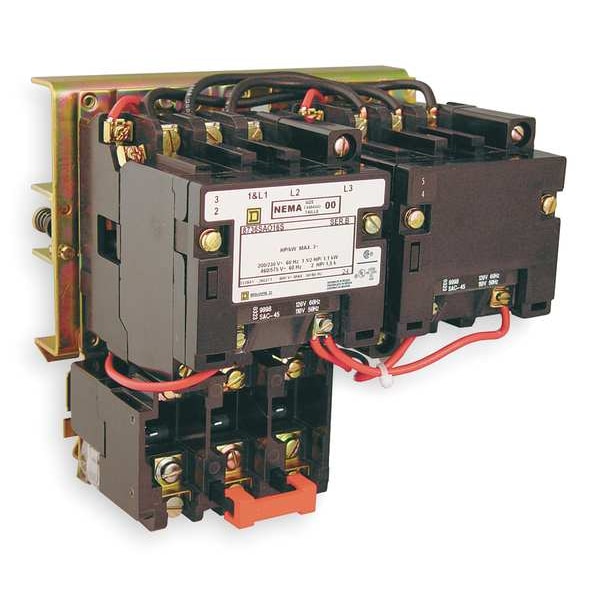

Arrancador magnético de motor NEMA para reversa, sin gabinete, calificación NEMA, 120V AC, 3 polos, 1NC.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 15 to 45 A |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 15 HP |
| Starter Type | NEMA Style |
| Action | Reversing |
| Amps AC | 45 A |
| NEMA Size | 2 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 25 HP |
| HP @ 3 Phase - 575V | 25 hp |
| Includes | Solid state overload relay |
| Standards | CSA, UL Listed |
| Depth | 6.03 in |
| Hz | 50/60 |
| Features | Solid State Overload Relay |
| Width | 9 in |
| Height | 8-1/2 in |
| HP @ 3 Phase - 208V | 10 HP |
| Enclosure Type | Open |
| Thermal Unit Code | Not Applicable |
| Operating Voltage | 600V AC |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Terminal Connection Type | Screw Clamp Terminals |
| Frequency | 50/60 Hz |
| Starter Style | NEMA |
| Overload Protection Type | Electronic |
| Includes Pilot Light | No |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| NEMA Enclosure Rating | No Enclosure |
| Overall Depth | 6.03 in |
| Reversing Capability | Reversing |
| Operator | None |
| Horsepower @ Three Phase - 480V AC | 25 HP |
| Overall Height | 8-1/2 in |
| Coil Voltage | 110/120V AC |
| Overall Width | 9 in |
| Maximum Voltage Rating | 600 V AC |
| Trip Class | 10/20 |
| Phase | Three |
| Minimum Overload Relay Current Setting | 15 A |
| Current AC | 45 A |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Number of Auxillary Contacts | 0 |
| Operator Function | Not Applicable |
| Includes Auxiliary Contacts | No |
| Maximum Overload Relay Current Setting | 45 A |
| Certifications | UL Listed |
| Auxiliary Contacts | Without |
| Short Circuit Current Rating | Circuit-breaker 100 A maximum: 100 kA at 480 V AC; Fuse J 100 A maximum: 100 kA at 600 V AC; Fuse T 100 A maximum: 100 kA at 600 V AC; Fuse RK1 100 A maximum: 100 kA at 600 V AC; Fuse RK5 100 A maximum: 100 kA at 600 V AC |
| Type Of Overload | Solid state Motor Logic class 10/20 |
| Control Units | No control units |
| Horsepower Rating | 10 HP 200 V AC; 15 HP 230 V AC; 25 HP 460 V AC; 25 HP 575 V AC |
| Mounting Orientation | Horizontal |
| Control Circuit Type | Separate control circuit |
| Wiring Mode | 3 wires |
| Pilot Light | Without pilot light |
| Package Quantity | 1 |
