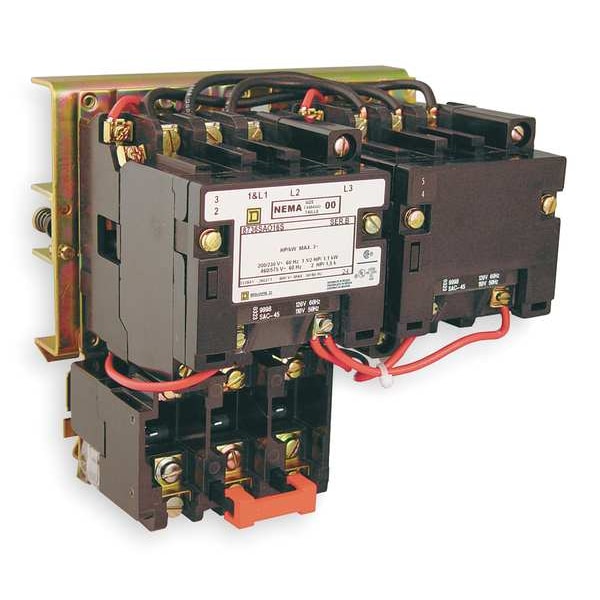

Arrancador magnético de motor NEMA con inversión, sin cubierta clasificación NEMA, 120V AC, 3 polos, 1NC.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 30 to 90 A |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 30 HP |
| Starter Type | NEMA Style |
| Action | Reversing |
| Amps AC | 90 A |
| NEMA Size | 3 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 50 HP |
| Width | 12.72 in |
| HP @ 3 Phase - 208V | 25 HP |
| HP @ 3 Phase - 575V | 50 hp |
| Hz | 50/60 |
| Features | Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism |
| Standards | CSA, UL Listed |
| Depth | 7 in |
| Height | 7.97 in |
| Includes | Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism |
| Thermal Unit Code | Not Applicable |
| Enclosure Type | Open |
| Operating Voltage | 600V AC |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Reversing Capability | Reversing |
| Frequency | 50/60 Hz |
| Minimum Overload Relay Current Setting | 30 A |
| Includes Auxiliary Contacts | No |
| Overall Width | 12.72 in |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Operator | None |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Coil Voltage | 120V AC |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Includes Pilot Light | No |
| Auxiliary Contact Module Capacity | 1 |
| Overall Depth | 7 in |
| Overload Protection Type | Electronic |
| Phase | Three |
| Overall Height | 11.72 in |
| Current AC | 90 A |
| Series | 8536 |
| Maximum Overload Relay Current Setting | 90 A |
| Maximum Voltage Rating | 600 V AC |
| Number of Auxillary Contacts | 0 |
| Mounting Postion | Horizontal |
| NEMA Enclosure Rating | No Enclosure |
| Starter Style | NEMA |
| Trip Class | 10/20 |
| Terminal Connection Type | Screw Clamp Terminals |
| Operator Function | Not Applicable |
| Type Of Overload | Solid state Motor Logic class 10/20 |
| Control Units | No control units |
| Short Circuit Current Rating | Circuit-breaker 150 A maximum: 100 kA at 480 V AC; Fuse J 200 A maximum: 100 kA at 600 V AC; Fuse T 200 A maximum: 100 kA at 600 V AC; Fuse RK1 200 A maximum: 100 kA at 600 V AC; Fuse RK5 200 A maximum: 100 kA at 600 V AC |
| Certifications | UL Listed |
| Horsepower Rating | 25 HP 200 V AC; 30 HP 230 V AC; 50 HP 460 V AC; 50 HP 575 V AC |
| Auxiliary Contacts | Without |
| Wiring Mode | 3 wires |
| Pilot Light | Without pilot light |
| Control Circuit Type | Separate control circuit |
| Package Quantity | 1 |
