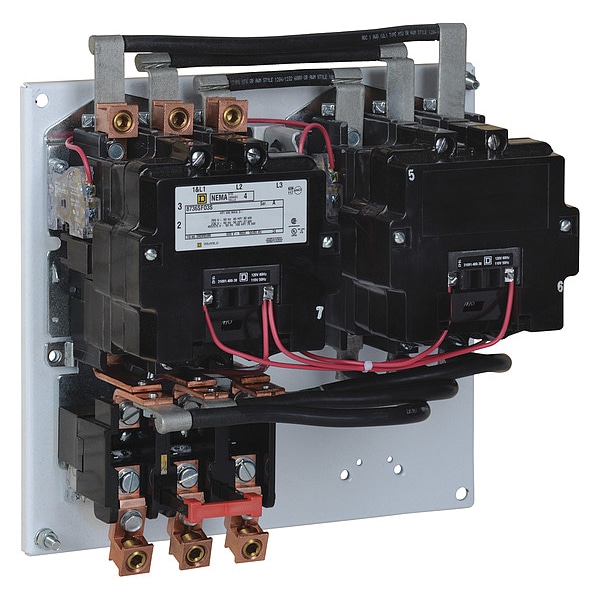

Arrancador de reversa 600Vac 135A Nema, sin clasificación de NEMA, 110/120V AC, 3 polos.
| Item | Reversing Starter 600Vac 135A Nema |
|---|---|
| Coil Volts | 110/120V AC |
| Enclosure NEMA Rating | Not Rated |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Reversing |
| Amps AC | 135 A |
| NEMA Size | 4 |
| Number of Poles | 3 |
| Width | 361.95 mm |
| Height | 370.59 mm |
| Enclosure Type | Open |
| Depth | 177.8 mm |
| Standards | UL Listed; CSA |
| Hz | 50/60 Hz |
| Operating Voltage | 600V AC |
| Phase | 3 phase |
| Control Circuit Type | Separate control circuit |
| Type Of Overload | Melting alloy 3 |
| Terminal Type | Screw clamp terminals |
| Horsepower Rating | 40 HP 200 V AC; 50 HP 230 V AC; 100 HP 460 V AC; 100 HP 575 V AC |
| Pilot Light | Without pilot light |
| Auxiliary Contacts | Without |
| Control Units | No control units |
| Wiring Mode | 3 wires |
| Short Circuit Current Rating | 10 kA to 600 V AC (Circuit-breaker), 10 kA to 600 V AC (Fuse) |
| Mounting Orientation | Horizontal |
| Coil Voltage | Hz |
| Maximum Voltage Rating | 600 V AC |
| Package Quantity | 1 |
