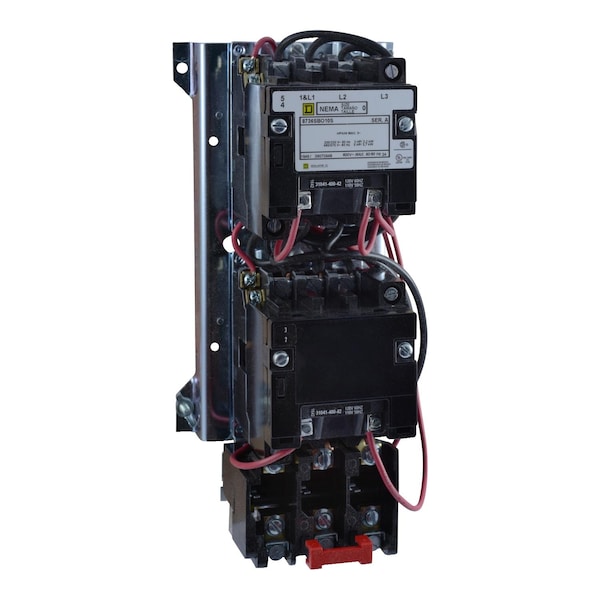

Arrancador inversor 600Vac 18A Nema, No calificado NEMA Rating, 110/120V AC, 3 polos.
| Item | Reversing Starter 600Vac 18A Nema |
|---|---|
| Coil Volts | 110/120V AC |
| Enclosure NEMA Rating | Not Rated |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Reversing |
| Amps AC | 18 A |
| Number of Poles | 3 |
| Width | 138.94 mm |
| Enclosure Type | Open |
| Standards | UL Listed; CSA |
| Hz | 50/60 Hz |
| Height | 292.61 mm |
| Depth | 134.87 mm |
| Operating Voltage | 600V AC |
| Short Circuit Current Rating | 5 kA to 600 V AC (Circuit-breaker), 5 kA to 600 V AC (Fuse) |
| Control Units | No control units |
| Wiring Mode | 3 wires |
| Mounting Orientation | Vertical |
| Pilot Light | Without pilot light |
| Horsepower Rating | 3 HP 200 V AC; 3 HP 230 V AC; 5 HP 460 V AC; 5 HP 575 V AC |
| Terminal Type | Screw clamp terminals |
| Control Circuit Type | Separate control circuit |
| Phase | 3 phase |
| Coil Voltage | Hz |
| Auxiliary Contacts | Without |
| Maximum Voltage Rating | 600 V AC |
| Type Of Overload | Melting alloy 3 |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz, 120 V AC 60 Hz |
| Poles Description | 3P |
| Thermal Overload Type | melting alloy 3 |
| Rated Power In Hp | 3 HP 200 V AC, 3 HP 230 V AC, 5 HP 460 V AC, 5 HP 575 V AC |
| Nema Size | 0 |
| Nema Degree of Protection | not rated (open device) |
| Range of Product | S |
| Package Quantity | 1 |
