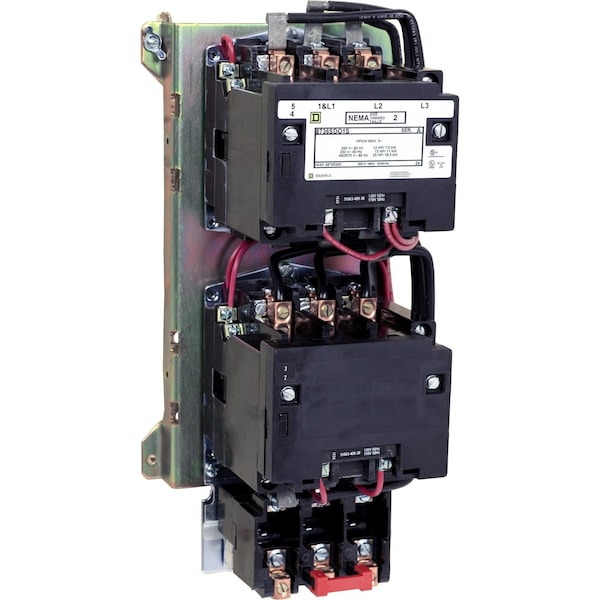

Arrancador de reversa 600Vac 45A Nema, sin clasificación NEMA, 110/120V AC, 3 polos.
| Item | Reversing Starter 600Vac 45A Nema |
|---|---|
| Coil Volts | 110/120V AC |
| Enclosure NEMA Rating | Not Rated |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Reversing |
| Amps AC | 45 A |
| NEMA Size | 2 |
| Number of Poles | 3 |
| Width | 171.45 mm |
| Hz | 50/60 Hz |
| Standards | UL Listed; CSA |
| Height | 342.39 mm |
| Depth | 153.16 mm |
| Enclosure Type | Open |
| Operating Voltage | 600V AC |
| Electrical Connection | Screw Clamp Terminals |
| Thermal Overload Type | melting alloy 3 |
| [Ue] Rated Operational Voltage | 600 V AC |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz, 120 V AC 60 Hz |
| Installation Direction | vertical |
| Control Circuit | Separate control circuit |
| Wiring Mode | 3 wires |
| Phase | 3 phase |
| Range of Product | S |
| Nema Degree of Protection | not rated (open device) |
| Local Signalling | without pilot light |
| Auxiliary Contact Composition | without |
| Control Units | No control units |
| Poles Description | 3P |
| Rated Power In Hp | 10 HP 200 V AC, 15 HP 230 V AC, 25 HP 460 V AC, 25 HP 575 V AC |
| Product or Component Type | starter |
| Package Quantity | 1 |
