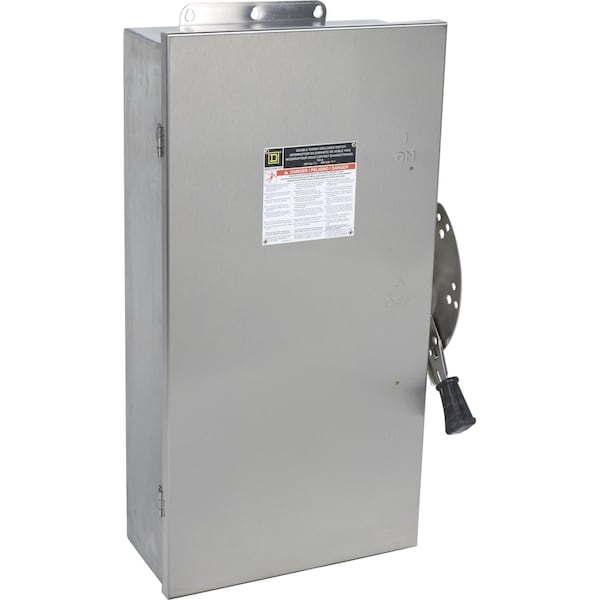

Interruptor de seguridad, de doble tiro, no fusible, 100A, 600V, 4 polos, 100hp, NEMA 4, 4X, 5, acero 304.
| Item | SW NOT FUSIBLE 600V 100A 4P NEMA4 4X 5 |
|---|---|
| Width | 16-3/4 in |
| Depth | 7.12 in |
| Height | 30.26 in |
| Nema Degree Of Protection | NEMA 4/4X/5 stainless steel 304 |
| Line Rated Current | 100 A |
| Product Or Component Type | Double Throw Safety Switch |
| Product Certifications | UL Listed |
| Disconnector Device Type | disconnect switch |
| Device Mounting | surface |
| Short-Circuit Current | 10 kA H or K || 200 kA R, J or T |
| Number Of Poles | 4 |
| Tightening Torque | 35-35 lbf.in 2.06-5.26 mm² (AWG 14 to AWG 1/0) || 40-40 lbf.in 8.37-8.37 mm² (AWG 8) || 45-45 lbf.in 13.30-53.48 mm² (AWG 8) || 50-50 lbf.in 26.67-53.48 mm² (AWG 6 to AWG 4) |
| Awg Gauge | AWG 12 to AWG 1/0 aluminium || AWG 14 to AWG 1/0 copper |
| Fuse Type | J, H, K, R, T |
| Series Name | heavy duty |
| [Ue] Rated Operational Voltage | 600 V AC || 600 V DC |
| Device Composition | none |
| Package Quantity | 1 |
