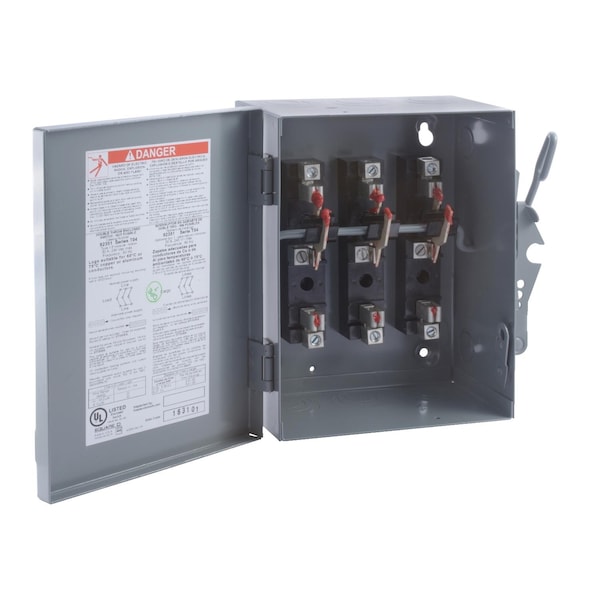

Interruptor de seguridad, de doble tiro, no fusible, 30A, 240V, 3 polos, NEMA 1, clase de fusible T4.
| Item | Switch |
|---|---|
| Height | 10 in |
| Width | 9-3/4 in |
| Depth | 4-3/4 in |
| Disconnector Device Type | disconnect |
| Series Name | general duty |
| Line Rated Current | 30 A |
| [Ue] Rated Operational Voltage | 240 V AC |
| Product Or Component Type | safety switch |
| Fuse Type | H, K |
| Nema Degree Of Protection | NEMA 1 |
| Device Mounting | surface |
| Short-Circuit Current | 10 kA H or K |
| Product Certifications | UL Listed |
| Number Of Poles | 3 |
| Awg Gauge | AWG 12 to AWG 2 aluminium || AWG 14 to AWG 2 copper |
| Tightening Torque | 35-35 lbf.in 2.08-5.26 mm² (AWG 14 to AWG 10) || 40-40 lbf.in 8.37-8.37 mm² (AWG 8) || 45-45 lbf.in 13.3-21.15 mm² (AWG 6 to AWG 4) || 50-50 lbf.in 26.67-33.62 mm² (AWG 3 to AWG 2) |
| Device Composition | none |
| Package Quantity | 1 |
