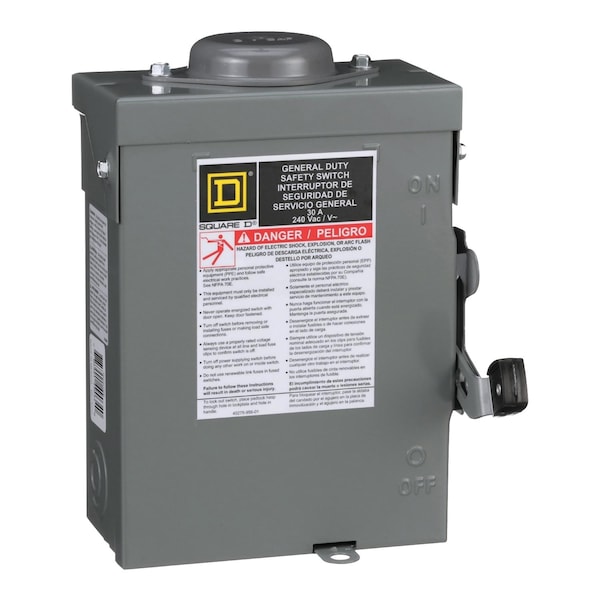

Interruptor de seguridad, deber general, no fusible, 30A, 2 polos, 3hp, 240VAC, NEMA 3R, con disposición para tornillos.
| Item | Gd Nonfused 2 Pole 30A Nema 3R Unit Pack |
|---|---|
| Depth | 3-3/4 in |
| Features | Gd Nonfused 2 Pole 30A Nema 3R Unit Pack |
| Width | 7-3/4 in |
| Height | 9.63 in |
| Electrical Connection | Lugs |
| Number of Poles | 2 |
| Phase | 1 phase |
| Line Rated Current | 30 A |
| Product Or Component Type | Single Throw Safety Switch |
| Wiring Configuration | 2 wires |
| Device Mounting | surface |
| Tightening Torque | 30-30 lbf.in 2.08-13.3 mm² (AWG 14 to AWG 6) |
| Nema Degree Of Protection | NEMA 3R |
| Device Application | Residential |
| Disconnector Device Type | non-fusible disconnect switch |
| Series Name | general duty |
| Motor Power Hp | 3 hp at 240 V AC 60 Hz for 1 phase motors |
| Product Certifications | UL listed file E2875 |
| [Ue] Rated Operational Voltage | 240 V AC |
| Awg Gauge | AWG 14 to AWG 6 copper || AWG 12 to AWG 6 aluminium |
| Wire Size | AWG 14 to AWG 6 copper; AWG 12 to AWG 6 aluminium |
| Factory Installed Neutral | None |
| Pvc Free | Yes |
| Package Quantity | 1 |
