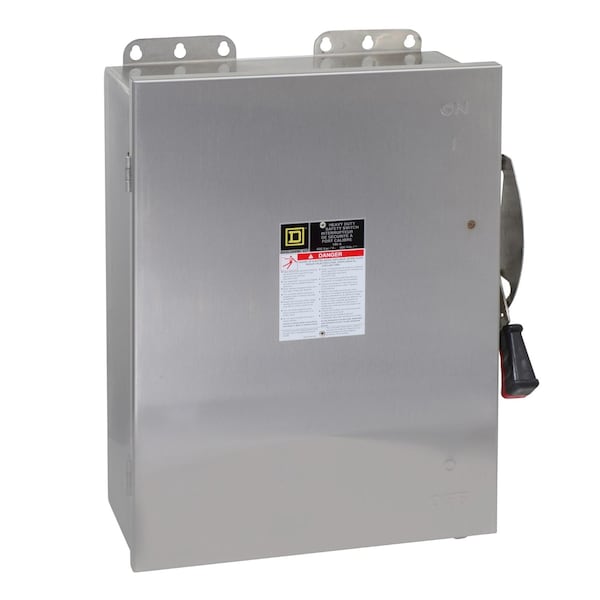

Interruptor de seguridad, resistente, no fusible, 100A, 4 polos, 75hp, 600VCA/CC, NEMA 4, 4X, 5, acero 304.
| Item | SW UNFUSED HD 600V 100A 4P NEMA4 4X 5 |
|---|---|
| Type | Safety Switch |
| Description/Special Features | Mercury Free; Pvc Free |
| Voltage | 600V AC/DC |
| Amps | 100 A |
| Width | 16.85 in |
| Mounting | Surface |
| Series | Heavy Duty |
| Electrical Connections | Lugs |
| Enclosure Rating | 5, NEMA 4/4X |
| Height | 20.82 in |
| Standards | UL listed file E2875 |
| Depth | 6.97 in |
| Tightening Torque | 50-50 lbf.in (AWG 1...AWG 3/0), 45-45 lbf.in (AWG 6...AWG 4), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10) |
| Phase | 3 phase |
| Wiring Configuration | 4-wire |
| Nema Degree of Protection | NEMA 4/4X / 5 stainless steel 304 |
| Number of Poles | 4 |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Disconnector Device Type | non-fusible disconnect |
| Device Composition | none |
| Device Application | heavy application |
| Awg Gauge | AWG 12...AWG 1/0 aluminium, AWG 14...AWG 1/0 copper |
| Pvc Free | Yes |
| Package Quantity | 1 |
