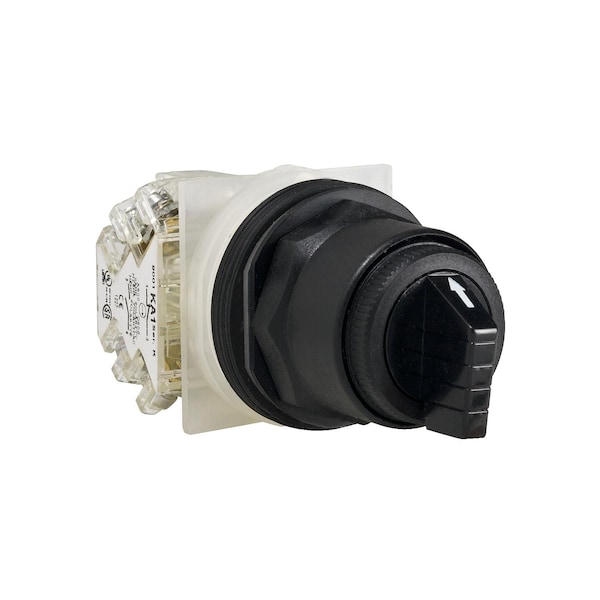

Interruptor selector, Harmony 9001SK, plástico, mango estándar, negro, 30mm, 3 posiciones, retorno por resorte de izquierda a centro, 1 contacto normalmente abierto.
| Item | SELECTOR SWITCH 600VAC 10A 30MM SK |
|---|---|
| Bezel Material | plastic |
| Contacts Type And Composition | O, 1 C |
| Mounting Diameter | 30 mm |
| Product Certifications | CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR |
| Operator Position Information | 3 positions |
| Protective Treatment | TC |
| Operator Profile | black standard knob |
| Ambient Air Temperature For Storage | -40-70°C |
| Type Of Operator | left to centre spring return |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Product Compatibility | 9001KA1 side 1 or 2 |
| Ambient Air Temperature For Operation | -25-70°C |
| Product Or Component Type | switch |
| Device Presentation | complete product |
| Device Short Name | 9001SK |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Range of Product | Harmony 9001SK |
| Return | left to centre |
| Cam Profile | 3 |
| Cap/Operator or Lens Colour | black |
| Package Quantity | 1 |
