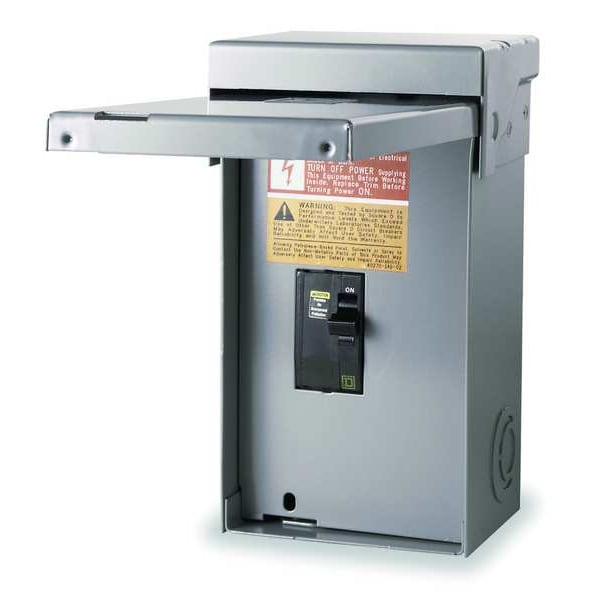

Interruptor de seguridad de un solo tiro, servicio general, 240V CA, 2PST, 100 A, NEMA 3R.
| Item | Single Throw Safety Switch |
|---|---|
| Duty | General |
| Voltage | 240V AC |
| Phase | 1 |
| HP | 15 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Non-Metallic |
| Material of Construction | Nonmetallic |
| Depth | 4-1/2 in |
| Includes | Circuit Breaker |
| Standards | UL listed |
| Height | 14 in |
| Width | 7.8 in |
| For Use With | Circuit breaker QO 2P |
| Amps | 100 |
| Enclosure NEMA Rating | 3 R |
| Weight | 4.01 kg |
| Features | Mercury Free |
| Location | Indoor, Outdoor |
| Enclosure Material | Galvanized Steel |
| Main Circuit Breaker or Main Lug | Main Lug |
| Short Circuit Current Rating | 10 kA |
| Color | Gray |
| Enclosure Surface Finish | Enamel |
| Circuit Breaker Type | QO |
| Package Quantity | 1 |
