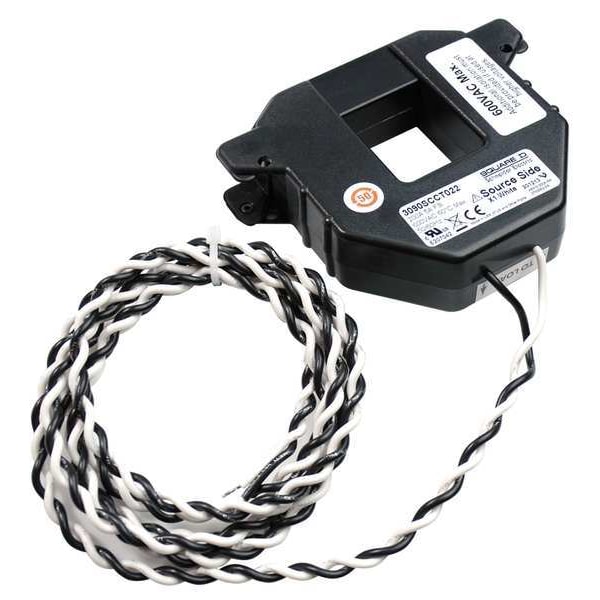

Split Core Current Transformer, 0 to 200A, 0 to 5A, 6 ft 18 AWG Leads
| Item - Transformer | Split Core Current Transformer |
|---|---|
| Primary Range | 0 to 200 A |
| Secondary Range | 0 to 5 A |
| Hole Dia. - Current Transformer | 1-1/4 in |
| Electrical Connection - Current Transformer | 6 ft 18 AWG Leads |
| Window | Rectangular |
| Overall Depth | 1-1/4 in |
| For Use With | Power Meters |
| Overall Width | 4.76 in |
| Hole Width | 1-1/4 in |
| Hole Height | 1.51 in |
| Overall Height | 4.21 in |
| Item | Split Core Current Transformer |
| Standards | EU RoHS, IEC 61010-1, REACH, UL 1015, UL 61010-1 |
| Includes | Not Applicable |
| Depth | 29 mm |
| Current Transformer Type | split core |
| Ambient Air Temperature For Storage | -40-70-C |
| Network Frequency | 50/60 Hz |
| Range Compatibility | PowerLogic (PowerLogic PM3000) power meter || PowerLogic (PowerLogic PM5000) power meter || PowerLogic (PowerLogic PM8000) power meter || PowerLogic (PowerLogic ION7400) power meter || PowerLogic CM4000T circuit monitor || Acti 9 (Acti9 iEM3000) energy meter |
| Pollution Degree | 2 |
| Ambient Air Temperature For Operation | -15-60-C |
| Measurement Accuracy | 1 % full scale |
| Insulation | basic insulation 600 V AC || reinforced insulation 300 V AC |
| Current Transformer Ratio | 200/5 |
| Network Type | AC |
| Relative Humidity | 0-95 % non-condensing |
| Secondary Current | 0.208333333333333 |
| Operating Altitude | <= 9842.52 ft (3000 m) |
| Secondary Power | 2.5 VA |
| Mounting Location | indoor use only |
| Transformer Type | Split Core |
| Window Diameter | Not Applicable |
| Primary Current - Maximum | 200 A |
| Wire Lead Length | 5.9 ft |
| Secondary Current - Maximum | 5 A |
| Operating Temperature - Maximum | 140 deg F |
| Window Width | 1-1/4 in |
| Operating Temperature - Minimum | 5 deg F |
| Window Shape | Rectangular |
| Window Height | 1.51 in |
| Frequency | 50/60 Hz |
| Connection | Wire Lead |
| Manufacturers Warranty Length | 18 mo |
| Package Quantity | 1 |
