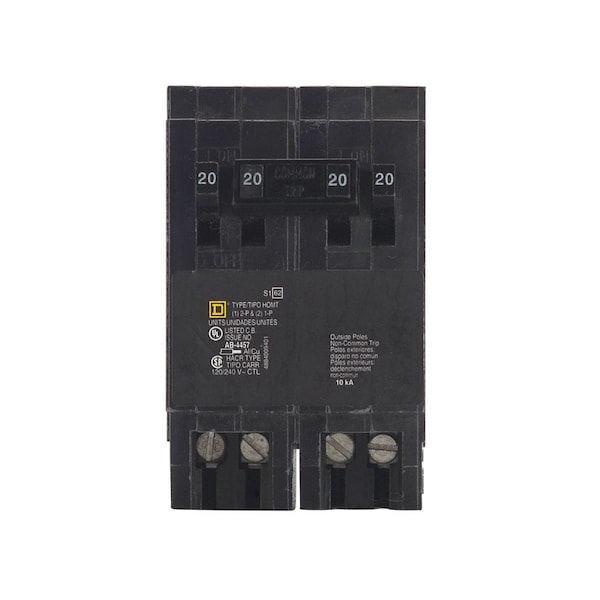

Square D HomeLine 20 amps Tandem 2-Pole Circuit Breaker
| Item | Miniature Circuit-Breaker |
|---|---|
| Overall Height (In.) | 3.13 |
| Voltage | 120/240V AC |
| Type | Quad Tandem |
| Overall Depth (In.) | 2.98 |
| Features | HACR Rated; Mercury Free; Toxic Heavy Metal Free |
| Standards | UL Listed |
| Width | 2 in |
| Ambient Air Temperature For Operation | 40°C |
| Mounting Mode | Plug-In |
| Electrical Connection | Box Lugs |
| Number of Poles | 2 |
| Number of Spaces Required | 2 |
| Gauge | 14 to 8 AWG |
| Line Rated Current | 20 A |
| Short-Circuit Current | 10 kA |
| Tightening Torque | 4 Nm |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
