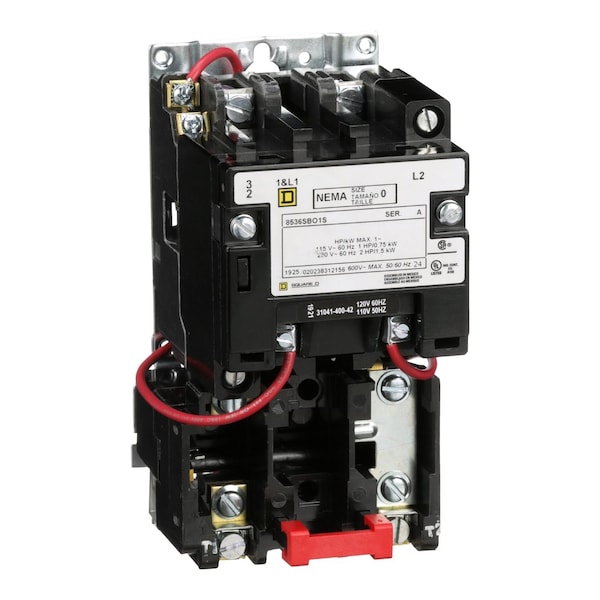

Arrancador 600Vac 18Amp Nema +Opciones, Sin clasificación NEMA, 110/120V AC, 2 Polos.
| Item | Starter 600Vac 18Amp Nema +Options |
|---|---|
| Coil Volts | 110/120V AC |
| Enclosure NEMA Rating | Not Rated |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Non Reversing |
| Amps AC | 18 A |
| Number of Poles | 2 |
| Width | 89 mm |
| Features | Pvc Free |
| Height | 172 mm |
| Standards | UL Listed; CSA; NEMA |
| Hz | 50/60 Hz |
| Depth | 107 mm |
| Enclosure Type | Open |
| Operating Voltage | 600V AC |
| Control Units | No control units |
| Type Of Overload | Melting alloy 1 |
| Auxiliary Contacts | Without |
| Control Circuit Type | Separate control circuit |
| Pilot Light | Without pilot light |
| Coil Voltage | Hz |
| Horsepower Rating | 1 HP 115 V AC; 2 HP 230 V AC |
| Terminal Type | Screw clamp terminals |
| Maximum Voltage Rating | 600 V AC |
| Short Circuit Current Rating | 5 kA to 600 V AC (Circuit-breaker), 5 kA to 600 V AC (Fuse) |
| Phase | 1 phase |
| Package Quantity | 1 |
