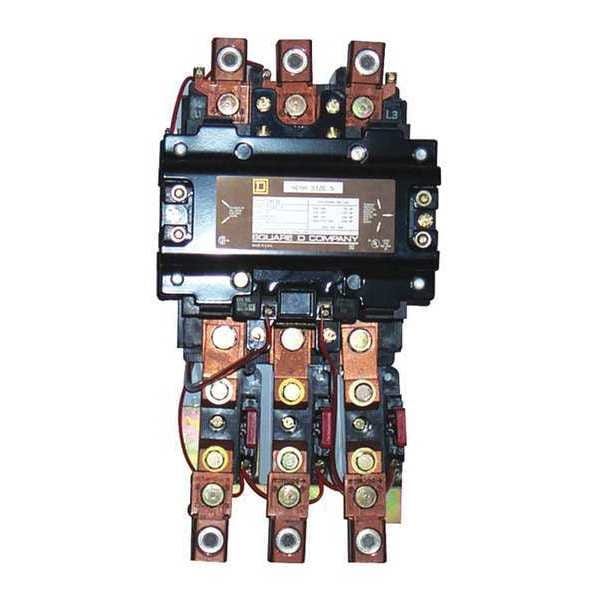

Arrancador de 600Vac 270Amp Nema con opciones, clasificación NEMA no especificada, 440/480V CA, 3 polos.
| Item | Starter 600Vac 270Amp Nema +Options |
|---|---|
| Coil Volts | 440/480V AC |
| Enclosure NEMA Rating | Not Rated |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Non Reversing |
| Amps AC | 270 A |
| NEMA Size | 5 |
| Number of Poles | 3 |
| Width | 217 mm |
| Depth | 222 mm |
| Standards | UL Listed; CSA; NEMA |
| Height | 446 mm |
| Hz | 50/60 Hz |
| Enclosure Type | Open |
| Operating Voltage | 600V AC |
| Thermal Overload Type | melting alloy 3 |
| Product or Component Type | motor starter |
| Poles Description | 3P |
| [Uc] Control Circuit Voltage | 440 V AC 50 Hz, 480 V AC 60 Hz |
| Control Type | No control units |
| Local Signalling | without pilot light |
| Range of Product | S |
| [Ue] Rated Operational Voltage | 600 V AC |
| Phase | 3 phase |
| Nema Degree of Protection | not rated (open device) |
| Electrical Connection | Screw Clamp Terminals |
| Control Circuit | common control circuit |
| Auxiliary Contact Composition | without |
| Rated Power In Hp | 75 HP 200 V AC, 100 HP 230 V AC, 200 HP 460 V AC, 200 HP 575 V AC |
| Package Quantity | 1 |
