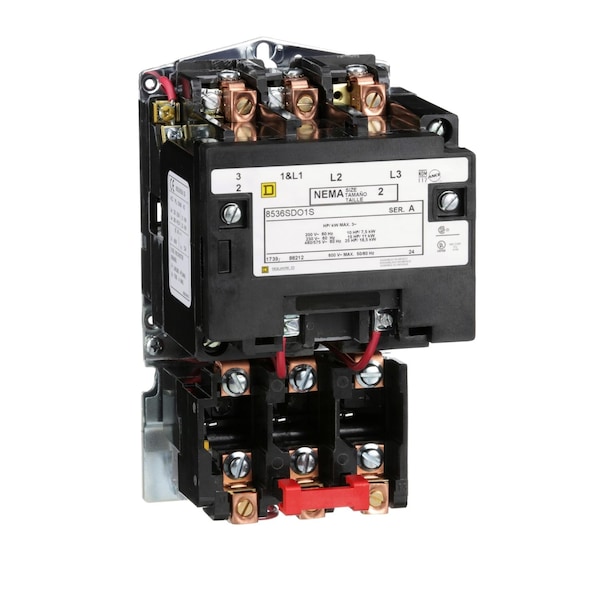

Arrancador 600Vac 45Amp Nema + Opciones, No Calificado Clasificación NEMA, 440/480V CA, 3 Polos.
| Item | Starter 600Vac 45Amp Nema +Options |
|---|---|
| Coil Volts | 440/480V AC |
| Enclosure NEMA Rating | Not Rated |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Non Reversing |
| Amps AC | 45 A |
| NEMA Size | 2 |
| Number of Poles | 3 |
| Depth | 125 mm |
| Height | 198 mm |
| Enclosure Type | Open |
| Standards | UL Listed; CSA; NEMA |
| Hz | 50/60 Hz |
| Width | 109 mm |
| Features | Free of Mercury & Pvc |
| Operating Voltage | 600V AC |
| Auxiliary Contacts | Without |
| Control Units | No control units |
| Control Circuit Type | Separate control circuit |
| Maximum Voltage Rating | 600 V AC |
| Terminal Type | Screw clamp terminals |
| Coil Voltage | Hz |
| Phase | 3 phase |
| Horsepower Rating | 10 HP 200 V AC; 15 HP 230 V AC; 25 HP 460 V AC; 25 HP 575 V AC |
| Type Of Overload | Melting alloy 3 |
| Short Circuit Current Rating | 5 kA to 600 V AC (Circuit-breaker), 5 kA to 600 V AC (Fuse) |
| Pilot Light | Without pilot light |
| Poles Description | 3P |
| [Uc] Control Circuit Voltage | 440 V AC 50 Hz, 480 V AC 60 Hz |
| Rated Power In Hp | 10 HP 200 V AC, 15 HP 230 V AC, 25 HP 460 V AC, 25 HP 575 V AC |
| Range of Product | S |
| Nema Degree of Protection | not rated (open device) |
| Pvc Free | Yes |
| Package Quantity | 1 |
