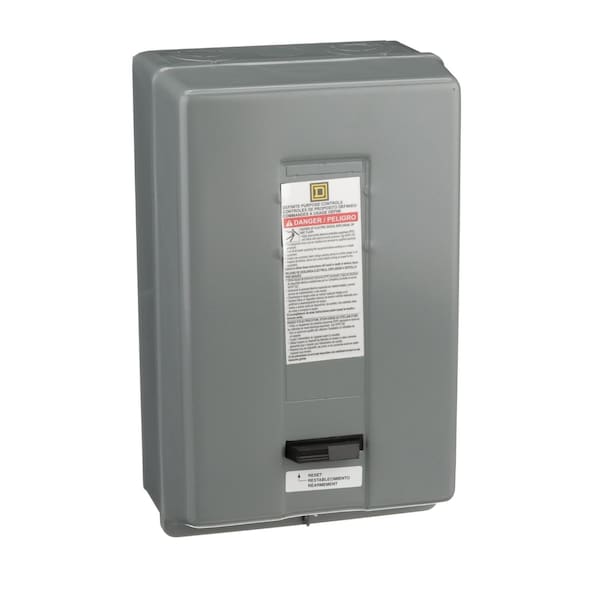

Controlador de motor de arranque 120VCA, clasificación NEMA 1 NEMA, 110/120V CA, 3 polos.
| Item | Starter Motor Control 120VAC |
|---|---|
| Coil Volts | 110/120V AC |
| Enclosure NEMA Rating | 1 |
| Starter Type | Definite Purpose Starter |
| Amps AC | 50 A |
| Number of Poles | 3 |
| Hz | 50/60 Hz |
| Enclosure Type | Painted Steel Sheet |
| HP @ 1 Phase - 230V | 10 |
| HP @ 3 Phase - 575V | 30 |
| Features | Mercury Free |
| Operating Voltage | 600V AC |
| Nema Degree of Protection | NEMA 1 |
| Locked Rotor Rated Current | 300 A 230 V AC, 250 A 460 V AC, 200 A 575 V AC |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz, 120 V AC 60 Hz |
| Product or Component Type | Definite Purpose Starter |
| Range of Product | DPS |
| Thermal Overload Type | melting alloy |
| Number of Thermal Units Required | 3 |
| Enclosure Material | Painted sheet steel |
| Poles Description | 3P |
| Maximum Horse Power Rating | 3-3 hp 115 V AC, 1 phase, 10-10 hp 230 V AC, 1 phase, 15-15 hp 230 V AC, 3 phase, 30-30 hp 460 V AC, 3 phase, 30-30 hp 575 V AC, 3 phase |
| [Ue] Rated Operational Voltage | 600 V AC |
| Line Rated Current | 50 A |
| Phase | 3 phase |
| Package Quantity | 1 |
