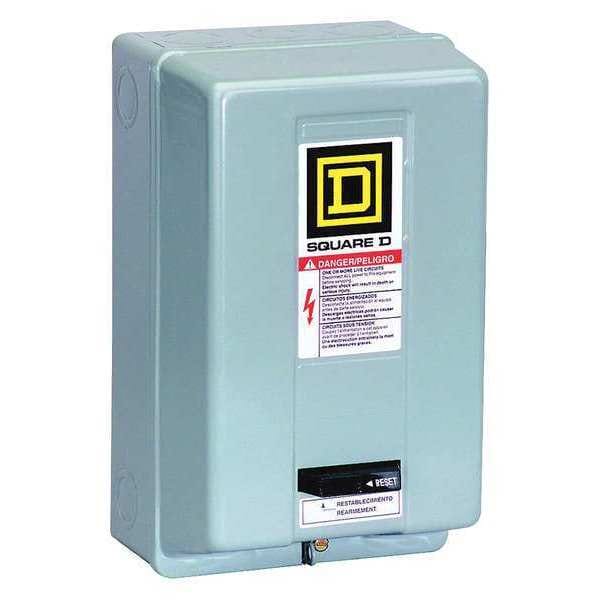

Controlador de Motor de Arranque Menos de 1000Vac, Clasificación NEMA 1, 110/120V AC, 2 Polos.
| Item | Starter Motor Control Less Than1000Vac |
|---|---|
| Coil Volts | 110/120V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Non Reversing |
| Amps AC | 27 A |
| NEMA Size | 1 |
| Number of Poles | 2 |
| Height | 254 mm |
| Hz | 50/60 Hz |
| Standards | UL Listed; CSA; NEMA |
| Features | Pvc Free |
| Depth | 141 mm |
| Width | 152 mm |
| Enclosure Type | Painted Steel Sheet |
| Operating Voltage | 600V AC |
| Terminal Type | Screw clamp terminals |
| Type Of Overload | Melting alloy 1 |
| Pilot Light | Without pilot light |
| Control Circuit Type | Separate control circuit |
| Auxiliary Contacts | Without |
| Coil Voltage | Hz |
| Control Units | No control units |
| Horsepower Rating | 3 HP 230 V AC; 2 HP 115 V AC |
| Phase | 1 phase |
| Short Circuit Current Rating | 5 kA to 600 V AC (Circuit-breaker), 5 kA to 600 V AC (Fuse) |
| Maximum Voltage Rating | 600 V AC |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz, 120 V AC 60 Hz |
| Poles Description | 2P |
| Rated Power In Hp | 3 HP 230 V AC, 2 HP 115 V AC |
| Range of Product | S |
| Pvc Free | Yes |
| Thermal Overload Type | melting alloy 1 |
| Nema Degree of Protection | NEMA 1 painted sheet steel |
| Package Quantity | 1 |
