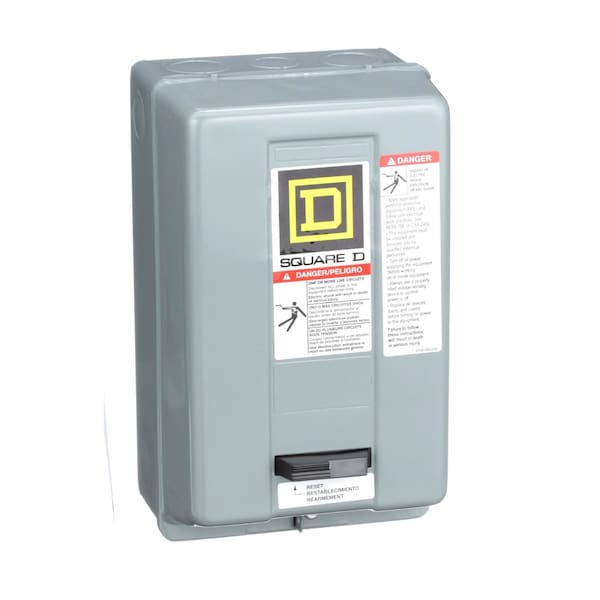

Control de motor de arranque Menos de 1000Vca, Clasificación NEMA 1, 280V CA, 3 Polos.
| Item | Starter Motor Control Less Than1000Vac |
|---|---|
| Coil Volts | 280V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Non Reversing |
| Amps AC | 27 A |
| NEMA Size | 1 |
| Number of Poles | 3 |
| Depth | 141 mm |
| Hz | 60 Hz |
| Height | 254 mm |
| Enclosure Type | Painted Steel Sheet |
| Features | Pvc Free |
| Standards | UL Listed; CSA; NEMA |
| Width | 152 mm |
| Operating Voltage | 600V AC |
| [Ue] Rated Operational Voltage | 600 V AC |
| Control Type | No control units |
| Range of Product | S |
| Auxiliary Contact Composition | without |
| Thermal Overload Type | melting alloy 3 |
| Poles Description | 3P |
| Nema Degree of Protection | NEMA 1 painted sheet steel |
| Rated Power In Hp | 7.5 HP 200 V AC, 7.5 HP 230 V AC, 10 HP 460 V AC, 10 HP 575 V AC |
| Local Signalling | without pilot light |
| Phase | 3 phase |
| Control Circuit | Separate control circuit |
| [Uc] Control Circuit Voltage | 208 V AC 60 Hz |
| Electrical Connection | Screw Clamp Terminals |
| Product or Component Type | motor starter |
| Pvc Free | Yes |
| Package Quantity | 1 |
