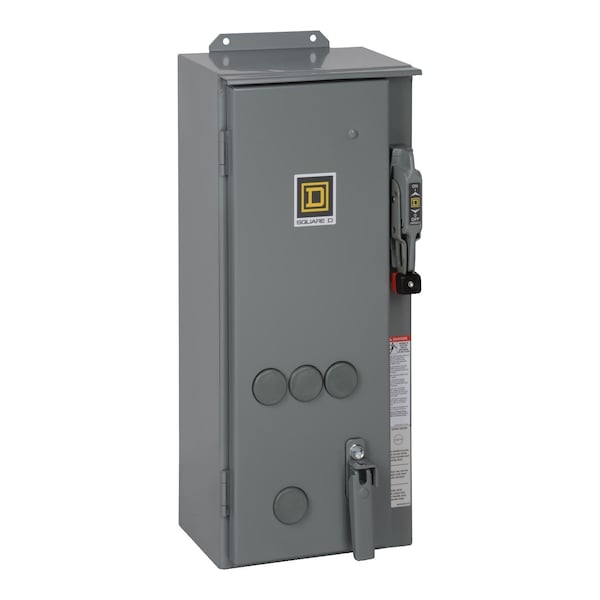

Controlador de arranque de motor de menos de 1000V CA, clasificación NEMA 12, 110/120V CA, 3 polos.
| Item | Starter Motor Control Less Than1000Vac |
|---|---|
| Type | S |
| Coil Volts | 110/120V AC |
| Enclosure NEMA Rating | 12 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Combination Non Reversing Starter |
| NEMA Size | 1 |
| Number of Poles | 3 |
| HP @ 3 Phase - 575V | 10 |
| Enclosure Type | Painted Steel Sheet |
| Hz | 50/60 Hz |
| Operating Voltage | 600V AC |
| Control Units | No control units |
| Pilot Light | No indicator |
| Control Circuit Voltage | 110 V AC 50 Hz; 120 V AC 60 Hz |
| Maximum Voltage Rating | 600 V AC |
| Horsepower Rating | 10 hp 460 V AC, 3 phase; 10 hp 575 V AC, 3 phase |
| Auxiliary Contacts | Without |
| Control Circuit Type | Separate control circuit |
| Thermal Overload Type | melting alloy 3 |
| Disconnect Type | disconnect switch |
| Nema Degree of Protection | NEMA 12 painted sheet steel without external reset |
| Maximum Horse Power Rating | 10-10 hp 460 V AC, 3 phase, 10-10 hp 575 V AC, 3 phase |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz, 120 V AC 60 Hz |
| Product or Component Type | Combination Starter |
| Poles Description | 3P |
| Motor Starter Type | non reversing |
| Package Quantity | 1 |
