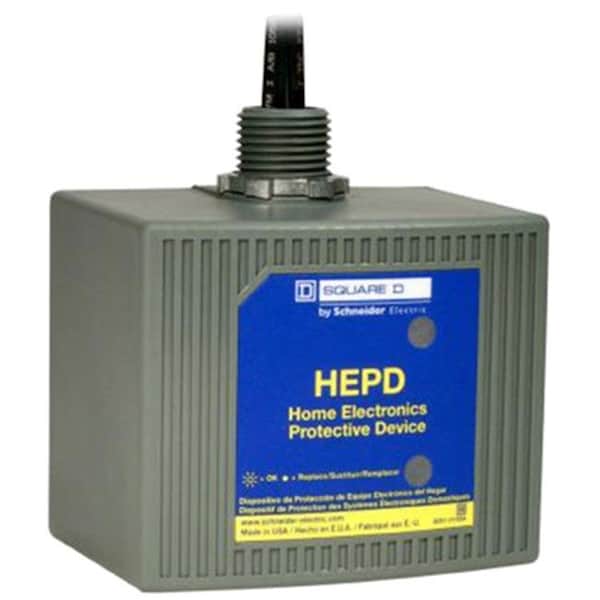

Surge Protection Device, 1 Phase, 120/240V, 3 Wires, 80 kA
| Item | Surge Protection Device |
|---|---|
| Phase | 1 |
| Voltage | 120/240V |
| Voltage Protection Rating | 1000V (L-L), 900V (N-G), 600V (L-N, L-G) |
| Number of Wires | 3 Wires |
| Max. Surge Current per Mode | 80 kA |
| Max. Surge Current per Phase | 80 kA |
| Nominal Discharge Current | 10 kA |
| Short Circuit Current Rating | 25 kA |
| Max. Continuing Operating Voltage | 150V |
| Enclosure NEMA Rating | NEMA 4X |
| Length | 3.23 in |
| Depth | 2.1 in |
| Width | 3.72 in |
| Wire Gauge | 14 AWG |
| Package Quantity | 1 |
