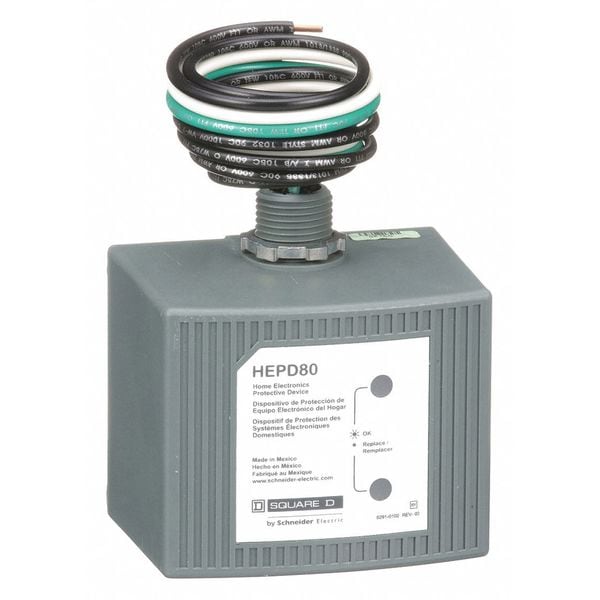

Surge Protection Device, 1 Phase, 120/240V AC, 2 Poles, 3 Wires + Ground

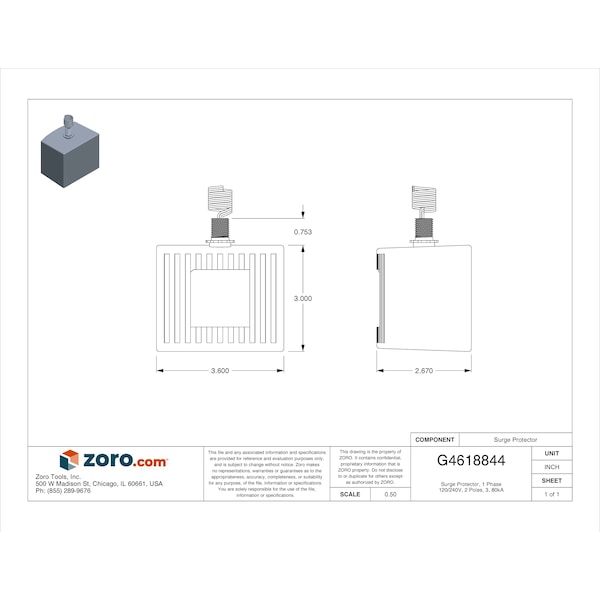

| CAD Available | Yes |
|---|---|
| Item | Surge Protection Device |
| Mounting Style | Panel |
| Phase | 1 |
| Voltage | 120/240V AC |
| Number of Poles | 2 |
| Voltage Protection Rating | 1000V (L-L, N-G), 600V (L-N), 700V (L-G) |
| Number of Wires | 3 Wires + Ground |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current Per Mode | 80 kA |
| Max. Surge Current per Phase | 80 kA |
| Nominal Discharge Current | 10 kA |
| Short Circuit Current Rating | 25 kA |
| Modular | No |
| Filtering | No |
| Max. Continuing Operating Voltage | 150V AC |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Material | Plastic |
| Length | 3.23 in |
| Depth | 2.1 in |
| Width | 3.72 in |
| Wire Gauge | 12 AWG |
| Includes | LED Status Indicator |
| Modular / Nonmodular | Nonmodular |
| Standards | cUL, UL 1449, UL 1449:ed. 4 Type I |
| Max. Operating Temp. | 149 deg F |
| Color | Gray |
| UL SPD Type | Type 1 |
| System Connection | Parallel |
| Min. Operating Temp. | -31 deg F |
| Amps | 10,000 |
| Includes Surge Counter | No |
| Status Indicator | LED Light |
| Local Signalling | 1 LED green normal operation || 1 LED green off |
| Connections - Terminals | wire AWG 14 |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Surge Current | 80 kA per phase |
| Product Destination | load center |
| Ambient Air Temperature For Operation | -40-65 °C |
| Device Short Name | HEPD |
| Surge Arrester Type | electrical distribution network |
| Cable Length | 34 in |
| Package Quantity | 1 |
