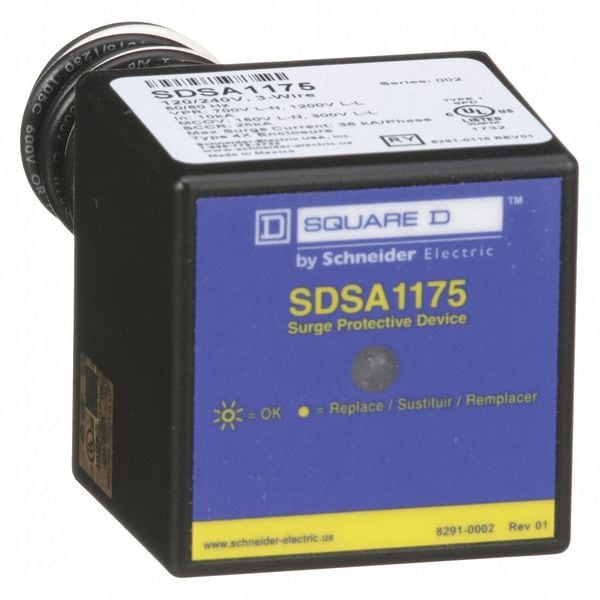

Surge Protection Device, 1 Phase, 120/240V AC, 2 Poles, 3 Wires, L-L/L-N, 1304 J, NEMA 4X
| CAD Available | Yes |
|---|---|
| Item | Surge Protection Device |
| Mounting Style | Chase Nipple |
| Phase | 1 |
| Voltage | 120/240V AC |
| Number of Poles | 2 |
| Voltage Protection Rating | 1200V (L-L), 700V (L-N) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-N, L-L |
| Max. Surge Current Per Mode | 36 kA |
| Max. Surge Current per Phase | 36 kA |
| Nominal Discharge Current | 10 kA |
| Short Circuit Current Rating | 25 kA |
| Modular | No |
| Filtering | No |
| Max. Continuing Operating Voltage | 150V AC |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Material | Plastic |

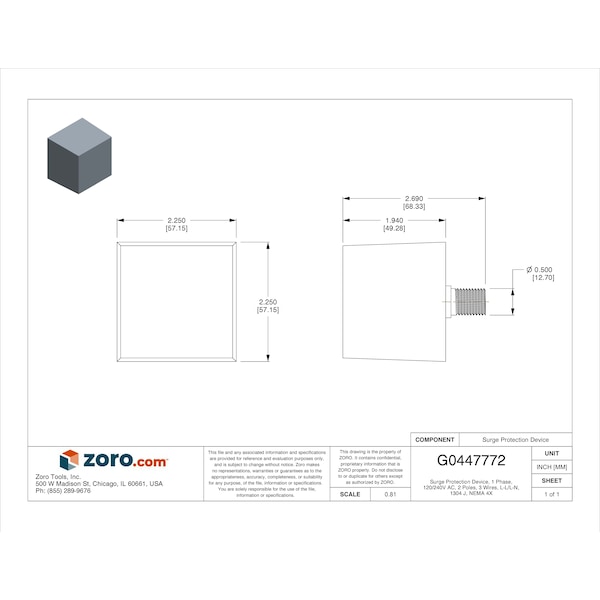

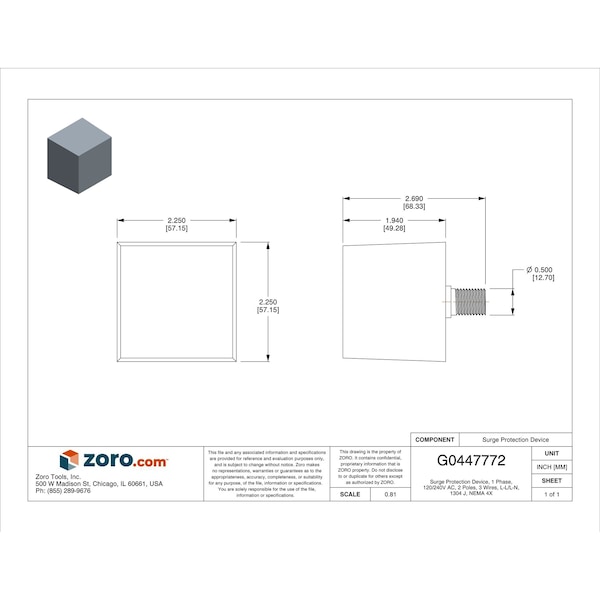

| Length | 2-1/2 in |
| Depth | 2.7 in |
| Width | 2-1/4 in |
| Wire Gauge | 14 AWG |
| Includes | LED Status Indicator |
| Joules | 1,304 |
| Standards | CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I |
| Modular / Nonmodular | Nonmodular |
| Max. Operating Temp. | 149 deg F |
| System Connection | Parallel |
| Amps | 36,000 |
| Color | Black |
| UL SPD Type | Type 1 |
| Status Indicator | LED Light |
| Includes Surge Counter | No |
| Package Quantity | 1 |
