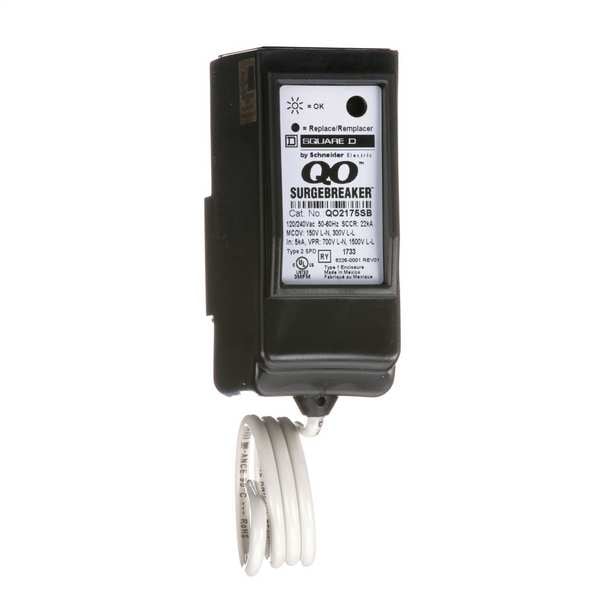

Surge Protection Device, 1 Phase, 120/240V AC, 2 Poles, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | For QO Load Centers |
| Phase | 1 |
| Voltage | 120/240V AC |
| Number of Poles | 2 |
| Voltage Protection Rating | 1500V (L-L), 700V (L-N) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-N, L-L |
| Max. Surge Current Per Mode | 22.5 kA |
| Max. Surge Current per Phase | 22.5 kA |
| Nominal Discharge Current | 5 kA |
| Short Circuit Current Rating | 22 kA |
| Modular | No |
| Filtering | No |
| Max. Continuing Operating Voltage | 150V AC |
| Enclosure NEMA Rating | NEMA 1 |
| Enclosure Material | Plastic |
| Length | 3.7 in |
| Depth | 2.6 in |
| Width | 1-1/2 in |
| Includes | LED Status Indicator |
| Modular / Nonmodular | Nonmodular |
| Standards | CSA 233.1-87, CSA C22.2 No. 8-M1986, NEC Article 285, UL Listed, UL 1449, Type 2 |
| System Connection | Parallel |
| Max. Operating Temp. | 149 deg F |
| Color | Black |
| UL SPD Type | Type 2 |
| Status Indicator | LED Light |
| Includes Surge Counter | No |
| Power Consumption In W | 500 mW |
| [Uc] Maximum Continuous Operating Voltage | 150 V || 300 V |
| Protection Type | thermal fuse |
| Response Time | < 50 ns |
| Product Destination | load center QO |
| Surge Current | 22.5 kA |
| Ambient Air Temperature For Operation | -20-65 °C |
| Local Signalling | 1 LED green normal operation |
| Product Certifications | cULus |
| Package Quantity | 1 |
