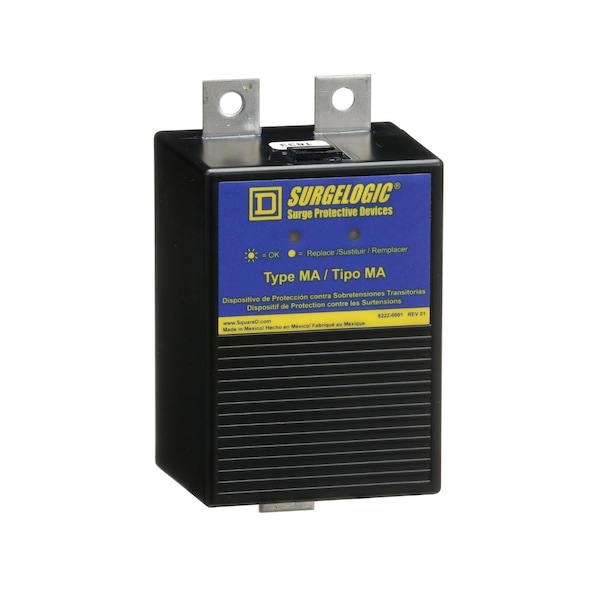

Surge Protection Device, 1 Phase, 120/240V AC, 3 Wires, 160 kA
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Panel |
| Phase | 1 |
| Voltage | 120/240V AC |
| Number of Wires | 3 Wires |
| Max. Surge Current per Mode | 160 kA |
| Max. Surge Current per Phase | 160 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Max. Continuing Operating Voltage | 150V |
| Enclosure NEMA Rating | NEMA 2 |
| Enclosure Material | Plastic |
| Length | 158.8 mm |
| Depth | 68.3 mm |
| Width | 82.8 mm |
| Standards | UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285 |
| Provided Equipment | alarm enable/disable switch |
| Surge Current | 160 kA per phase |
| Ambient Air Temperature For Operation | 65-65 °C |
| Local Signalling | status LED green normal operation |
| Mounting Support | panel mounting |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Device Short Name | IMA |
| Connections - Terminals | terminals |
| Range of Product | Surgelogic |
| Package Quantity | 1 |
