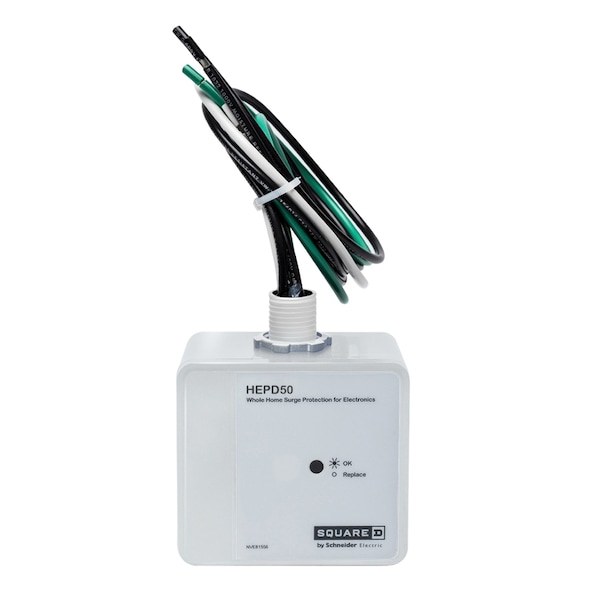

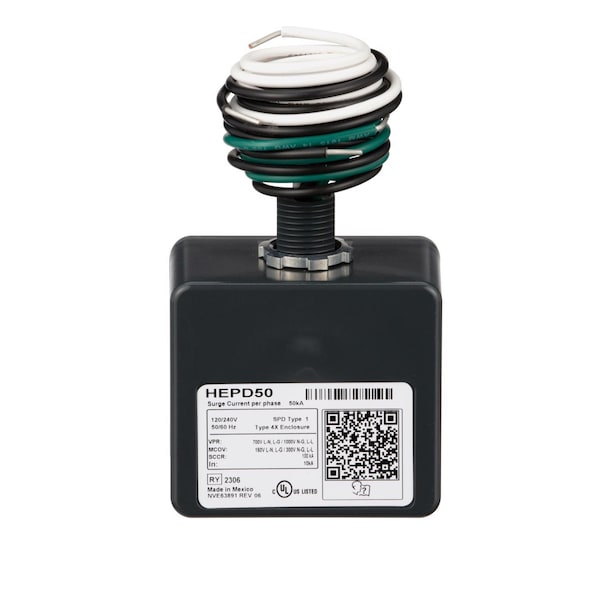

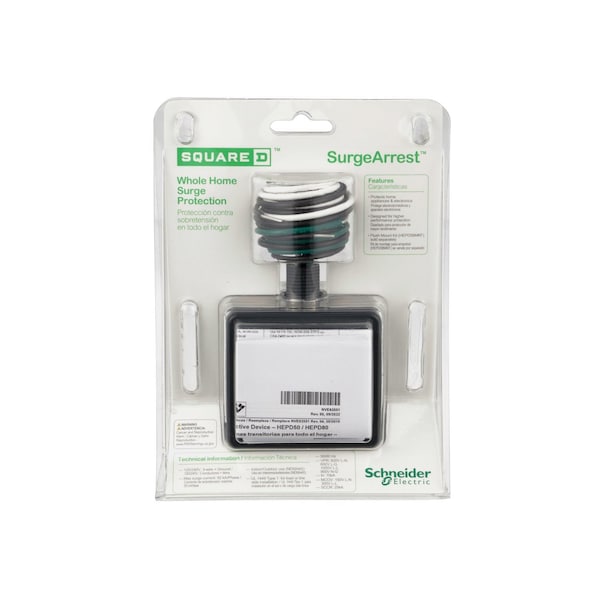

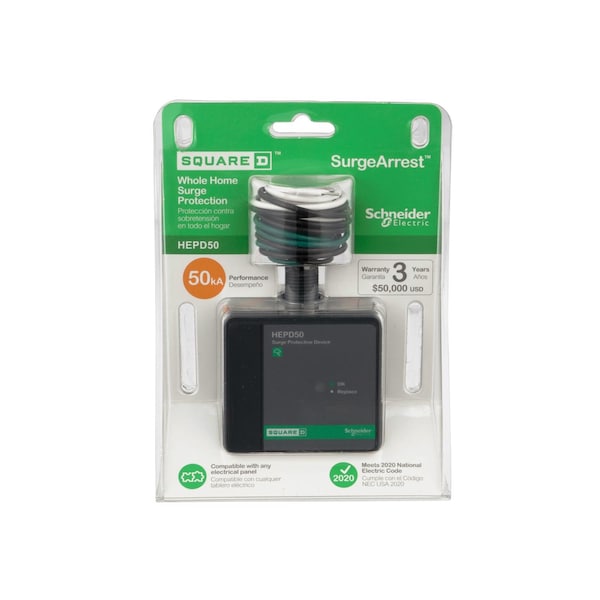

Surge Protection Device, 1 Phase, 120/240V AC, 3 Wires + Ground, 50 kA
| Item | Surge Protection Device |
|---|---|
| Phase | 1 |
| Voltage | 120/240V AC |
| Voltage Protection Rating | 1000V (L-L), 900V (N-G), 600V (L-N, L-G) |
| Number of Wires | 3 Wires + Ground |
| Max. Surge Current per Mode | 50 kA |
| Max. Surge Current per Phase | 50 kA |
| Nominal Discharge Current | 10 kA |
| Short Circuit Current Rating | 25 kA |
| Max. Continuing Operating Voltage | 150V |
| Enclosure NEMA Rating | NEMA 4X |
| Length | 3.23 in |
| Depth | 2.1 in |
| Width | 3.72 in |
| Standards | UL 1449 || cUL || UL 1449:ed. 4: type II |
| Ambient Air Temperature For Operation | -35-65 °C |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Device Short Name | HEPD |
| Local Signalling | 1 LED green normal operation |
| Product Destination | load center |
| Surge Current | 50 kA per phase |
| Package Quantity | 1 |
