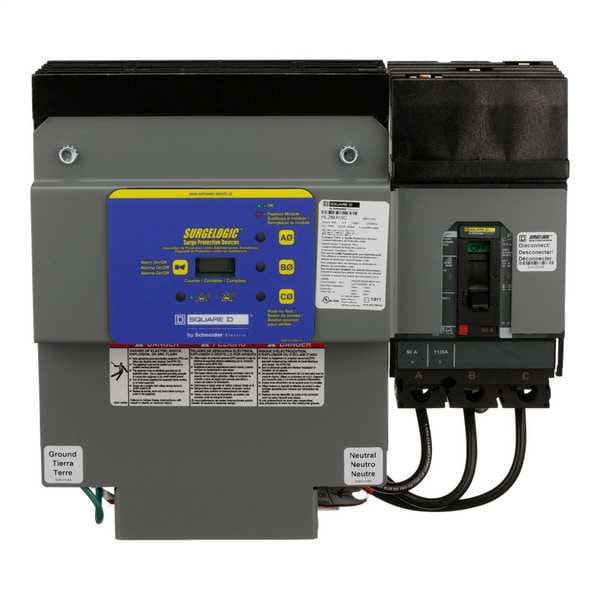

Surge Protection Device, 3 Phase, 120/208V AC, 3 Poles, 4 Wires, 160kA
| Item | Surge Protection Device |
|---|---|
| Mounting Style | For I-Line Panelboards |
| Phase | 3 |
| Voltage | 120/208V AC |
| Number of Poles | 3 |
| Voltage Protection Rating | 1200V (L-L, L-N), 700V (L-G), 900V (N-G) |
| Number of Wires | 4 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current per Mode | 160 kA |
| Max. Surge Current Per Phase | 160 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | Yes |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 150V AC |
| Enclosure NEMA Rating | NEMA 2 |
| Enclosure Material | Metal |
| Length | 12.16 in |
| Depth | 5.59 in |
| Width | 13.46 in |
| Wire Gauge | 6 AWG |
| Includes | Dry Contacts |
| Standards | CSA C22.2 No 5-09, CSA C22.2 No 8:1986, UL 96A:ed. 12, UL 489:ed. 11, UL 1449:ed. 3, UL 1283:ed. 5, Type 2 |
| Modular / Nonmodular | Modular |
| Filtering / Nonfiltering | Filtering |
| UL SPD Type | Type 2 |
| Amps | 60 |
| Color | Gray |
| System Connection | Parallel |
| Basic Material | Metallic |
| Length (Straight Wireway) | 12.16 in |
| Status Indicator | Audible Alarm, LED Light |
| Includes Surge Counter | Yes |
| Breaking Capacity Code | HL |
| Local Signalling | status LED green per phase normal operation || status LED red per phase fault |
| Surge Current | 160 kA |
| Mounting Support | panel mounting |
| Line Rated Current | 60 A |
| Breaking Capacity | 50 kA |
| Trip Unit Technology | thermal-magnetic |
| Provided Equipment | alarm enable/disable switch || surge counter || circuit-breaker |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Connections - Terminals | I-Line line || lugs ground AWG 6 copper 4 N.m || lugs neutral AWG 6 copper 4 N.m |
| Cable Length | 483 mm |
| Device Short Name | IMA |
| Package Quantity | 1 |
