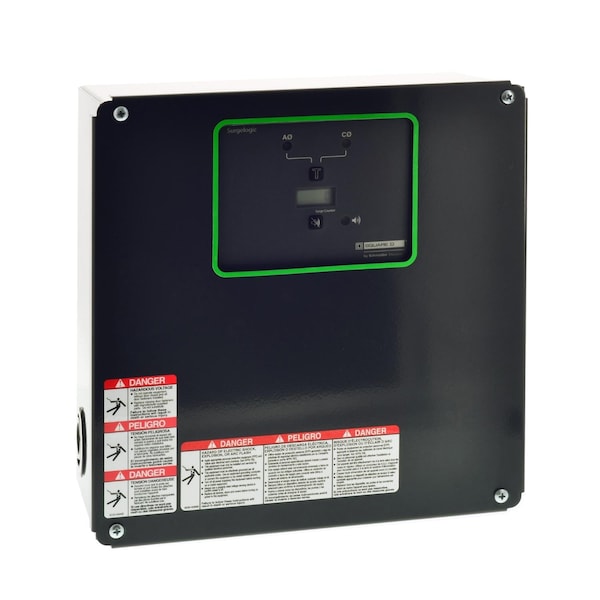

Surge Protection Device, 3 Phase, 120/240V AC, 4 Wires, 240 kA
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Surface |
| Phase | 3 |
| Voltage | 120/240V AC |
| Number of Wires | 4 Wires |
| Max. Surge Current per Mode | 240 kA |
| Max. Surge Current per Phase | 240 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Max. Continuing Operating Voltage | 150V |
| Enclosure NEMA Rating | NEMA 1 |
| Enclosure Material | Steel |
| Length | 282 mm |
| Depth | 135 mm |
| Width | 253.5 mm |
| Standards | CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5 |
| Device Mounting | surface |
| Surge Current | 240 kA |
| Local Signalling | status LED green per phase normal operation || status LED red per phase fault |
| Connections - Terminals | lugs AWG 10...AWG 2 copper 4 N.m |
| Cable Length | 483 mm |
| Provided Equipment | alarm enable/disable switch || surge counter || dry contacts |
| Ambient Air Temperature For Operation | 65-65 °C |
| Device Short Name | EMA |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Range of Product | Surgelogic |
| Package Quantity | 1 |
