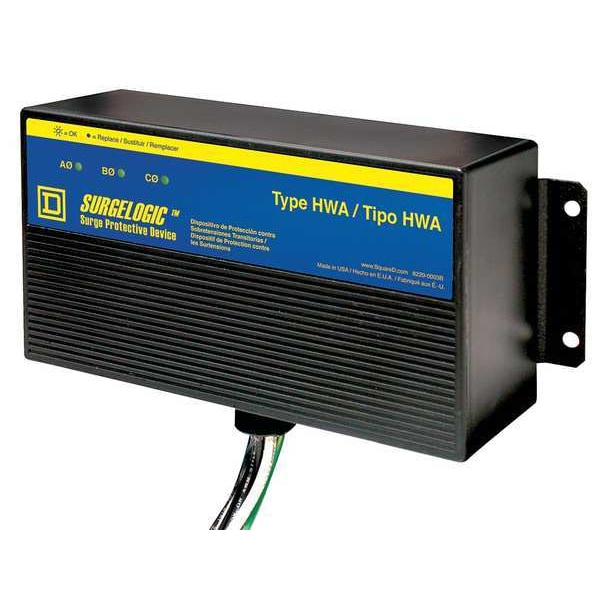

Surge Protection Device, 3 Phase, 347/600V AC, 1 Poles, 4 Wires, 100kA
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Chase Nipple/Wire Lead |
| Phase | 3 |
| Voltage | 347/600V AC |
| Number of Poles | 1 |
| Voltage Protection Rating | 1500V (L-N, N-G), 2500V (L-G), 3000V (L-L) |
| Number of Wires | 4 Wires |
| Filtering / Nonfiltering | Filtering |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current Per Mode | 100 kA |
| Max. Surge Current Per Phase | 100 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | No |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 420V AC |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Material | Plastic |
| Length | 4.8 in |
| Depth | 3.11 in |
| Width | 8.62 in |
| Wire Gauge | 10 AWG |
| Includes | Dry Contacts |
| Lightning Impulse Current | 100 kA |
| Modular / Nonmodular | Nonmodular |
| Standards | CSA C22.2 No 8:1986, Type 2, UL 1283:ed. 5, UL 1449:ed. 4 |
| Noise Attenuation | -54dB |
| UL SPD Type | Type 2 |
| Max. Operating Temp. | 149 deg F |
| System Connection | Parallel |
| Color | Black |
| Min. Operating Temp. | -4 deg F |
| Basic Material | Nonmetallic |
| Length (Straight Wireway) | 4.8 in |
| Status Indicator | Audible Alarm, LED Light |
| Includes Surge Counter | No |
| Local Signalling | status LED green per phase normal operation || status LED red per phase fault || alarm fault |
| Ambient Air Temperature For Operation | 65-65 °C |
| Surge Current | 100 kA per phase |
| Connections - Terminals | wire phase and neutral AWG 10 copper || wire ground AWG 10 copper || wire dry contacts AWG 22 copper |
| Cable Length | 33.6 in |
| Mounting Location | bottom of enclosure |
| [Uc] Maximum Continuous Operating Voltage | 420 V |
| Device Mounting | surface || flush fixing kit |
| Device Short Name | HWA |
| Package Quantity | 1 |
