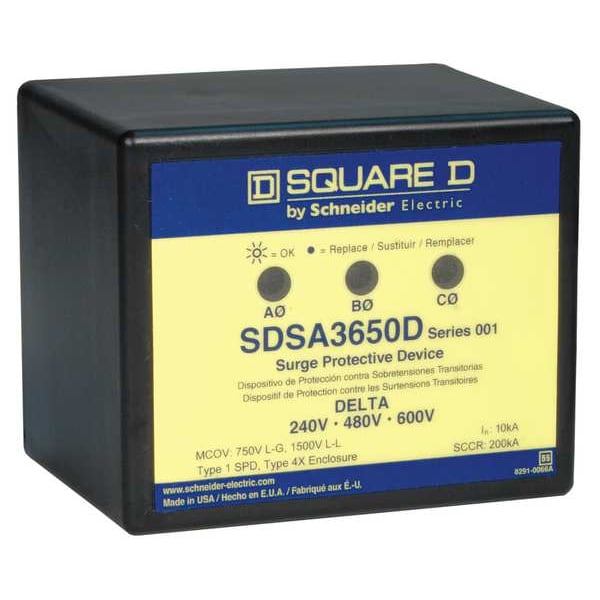

Surge Protection Device, 3 Phase, 600V AC, 3 Poles, 3 Wires
| CAD Available | Yes |
|---|---|
| Item | Surge Protection Device |
| Mounting Style | Chase Nipple |
| Phase | 3 |
| Voltage | 600 V |
| Number of Poles | 3 |
| Voltage Protection Rating | 3000V (L-L) |
| Filtering / Nonfiltering | Nonfiltering |
| Number of Wires | 3 Wires |
| Modes of Protection | L-L |
| Max. Surge Current per Mode | 40 kA |
| Max. Surge Current per Phase | 40 kA |
| Nominal Discharge Current | 10 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | No |
| Filtering | No |
| Max. Continuing Operating Voltage | 1020V AC |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Material | Plastic |

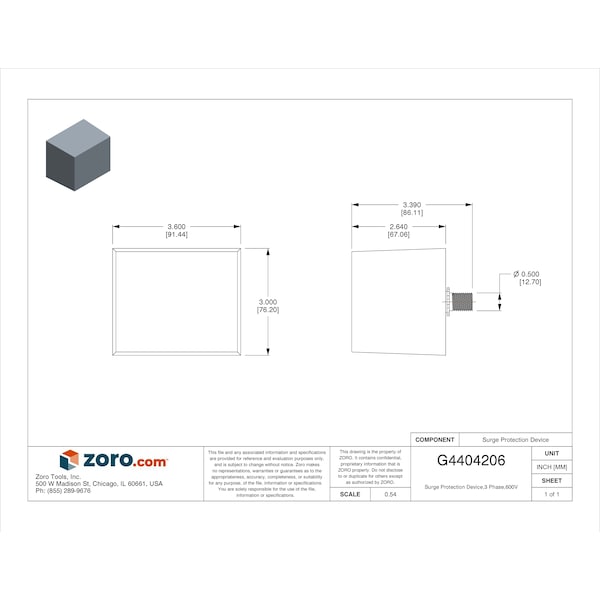

| Length | 3 in |
| Depth | 3.4 in |
| Width | 3.6 in |
| Wire Gauge | 12 AWG |
| Includes | LED Status Indicator |
| Modular / Nonmodular | Nonmodular |
| Standards | CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I |
| Amps | 40,000 |
| Chase Nipple Size | 1/2 in |
| Max. Operating Temp. | 149 deg F |
| UL SPD Type | Type 1 |
| System Connection | Parallel |
| Color | Black |
| Basic Material | Nonmetallic |
| Length (Straight Wireway) | 3 in |
| Includes Surge Counter | No |
| Status Indicator | LED Light |
| Ambient Air Temperature For Operation | 65-65 °C |
| [Uc] Maximum Continuous Operating Voltage | 1,020 V |
| Local Signalling | status LED green normal operation |
| Surge Current | 40 kA per phase |
| Cable Length | 24 in |
| Package Quantity | 1 |
