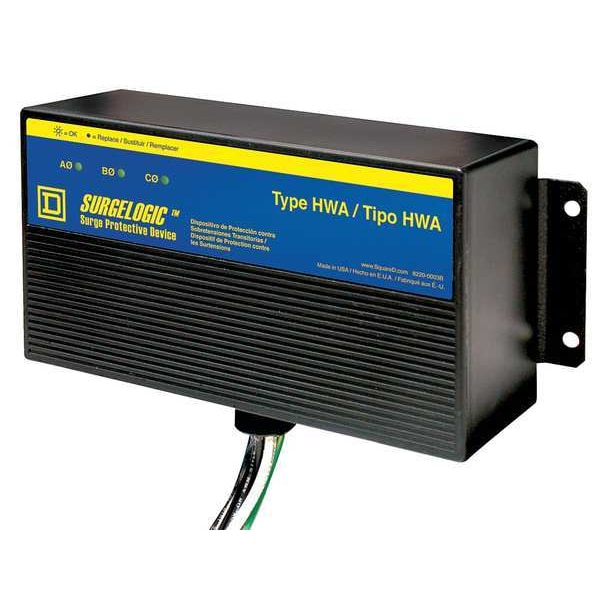

Surge Protection Device, Three Phase, 120/240V AC High Leg Delta, 2 Poles, 4 Wires + Ground, 100kA
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Chase Nipple/Wire Lead |
| Phase | Three |
| Voltage | 120/240V AC High Leg Delta |
| Number of Poles | 2 |
| Voltage Protection Rating | 1000V (L-N), 1200V (H-N, L-G), 1500V (H-G, L-L), 1800V (H-L), 700V (N-G) |
| Number of Wires | 4 Wires + Ground |
| Modes of Protection | L-G, L-N, N-G, L-L, H-G, H-N, H-L |
| Max. Surge Current Per Mode | 50 kA |
| Max. Surge Current Per Phase | 100 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | No |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 150/270 V AC |
| Enclosure NEMA Rating | 4X |
| Enclosure Material | Plastic |
| Length | 4.8 in |
| Depth | 3.11 in |
| Width | 8.62 in |
| Wire Gauge | 10 AWG |
| Includes | Dry Contacts |
| Filtering / Nonfiltering | Filtering |
| Lightning Impulse Current | 100 kA |
| Noise Attenuation | -54dB |
| Standards | CSA C22.2 No 8:1986, Type 2, UL 1283:ed. 5, UL 1449:ed. 4 |
| Modular / Nonmodular | Nonmodular |
| Color | Black |
| Max. Operating Temp. | 149 deg F |
| System Connection | Parallel |
| Min. Operating Temp. | -4 deg F |
| UL SPD Type | Type 2 |
| Basic Material | Nonmetallic |
| Length (Straight Wireway) | 4.8 in |
| Status Indicator | Audible Alarm, LED Light |
| Includes Surge Counter | No |
| Package Quantity | 1 |
