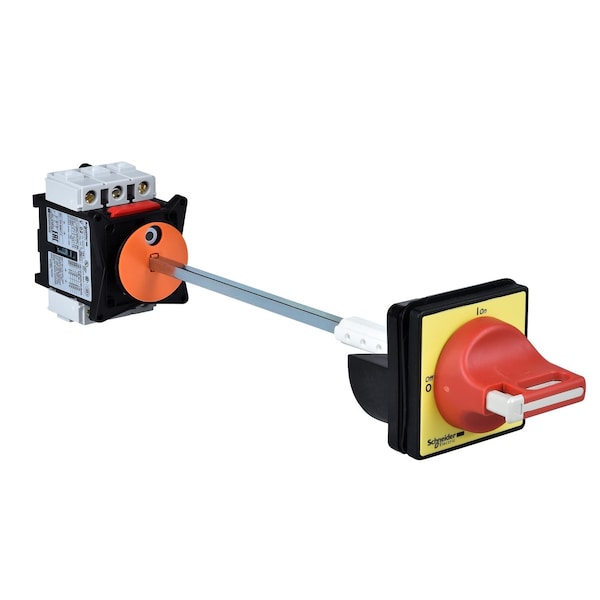

Interruptor seccionador, TeSys Control, para ENCENDIDO/parada de emergencia, 25A, fijación con 4 tornillos, para montaje en la parte posterior de un gabinete.
| Height | 74 mm |
|---|---|
| Item | 20A Sw Kit W/4 Hole Mtgred/Yellow Oper |
| Width | 60 mm |
| Standards | IEC 60947-3 |
| Product Certifications | UL || CSA || CCC || GL || UKCA |
| [Ithe] Conventional Enclosed Thermal Current | 20 A |
| Mechanical Durability | 100,000 cycle |
| Intermittent Duty Class | 30 |
| Protective Treatment | TC |
| Mounting Support | switch symmetrical rail || switch plate, handle door || switch symmetrical rail |
| [Icw] Rated Short-Time Withstand Current | 300 A 400 V 1 s |
| Making Capacity | 250 A 400 V AC-21A || 250 A 400 V AC-22A || 250 A 400 V AC-23A |
| Connections - Terminals | power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end |
| Rated Operational Power In W | 11 kW 500 V AC-23A) || 11 kW 690 V AC-3) || 15 kW 690 V AC-23A) || 4 kW 230 to 240 V AC-3) || 5.5 kW 400 to 415 V AC-3) || 7.5 kW 500 V AC-3) || 5.5 kW 230 to 240 V AC-23A) || 7.5 kW 400 to 415 V AC-23A) |
| Handle Front Plate Colour | yellow |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Electrical Durability | 100000 cycles AC-21 || 30000 cycles DC-1 to 5 |
| Ambient Air Temperature For Operation | -20-50°C |
| Marking | 0 - 1 |
| Range | TeSys |
| [Icm] Rated Short-Circuit Making Capacity | 1 kA 400 V at Ipeak |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 || IP65 |
| Mechanical Robustness | vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Network Type | AC || DC |
| Base Dimension | 60 mm x 60 mm |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Product Or Component Type | emergency stop switch disconnector |
| Fixing Mode | by 4 screws handle || by clips switch || by screws switch |
| Device Short Name | VCCF |
| Tightening Torque | power circuit 2.1-2.1 N.m screw clamp terminals |
| Product Name | TeSys VARIO |
| Breaking Capacity | 200 A 400 V AC-21A) || 200 A 400 V AC-22A) || 200 A 400 V AC-23A) |
| Fire Resistance | 960°C IEC 60695-2-1 |
| [Ie] Rated Operational Current | 14.5 A AC-23 Ue: 400 V |
| Contacts Type And Composition | 3 NO |
| Device Composition | shaft extension || switch |
| [Ith] Conventional Free Air Thermal Current | 25 A |
| Control Type | rotary handle |
| Rotary Handle Mounting Style | extended |
| Compatibility Code | main switch disconnector |
| Rated Conditional Short-Circuit Current | 10 kA 400 V 25 A aM || 10 kA 400 V 25 A gG |
| Performance Level | high performance |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Suitability For Isolation | yes |
| Poles Description | 3P |
| Handle Colour | red |
| Rated Conditional Short Circuit Current | 10 kA 400 V 25 A aM; 10 kA 400 V 25 A gG |
| Iec Rated Operational Power in W | 11 kW 500 V AC-23A); 11 kW 690 V AC-3); 15 kW 690 V AC-23A); 4 kW 230 to 240 V AC-3); 5.5 kW 400 to 415 V AC-3); 7.5 kW 500 V AC-3); 5.5 kW 230 to 240 V AC-23A); 7.5 kW 400 to 415 V AC-23A) |
| IEC Terminal Connection | Power circuit screw clamp terminals 0.02 in² (10 mm²) solid; Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end |
| Mounting Method | By 4 screws handle; By clips switch; By screws switch |
| Degree Of Protection | IP20 conforming to IEC 60529; IP65 |
| Package Quantity | 1 |
