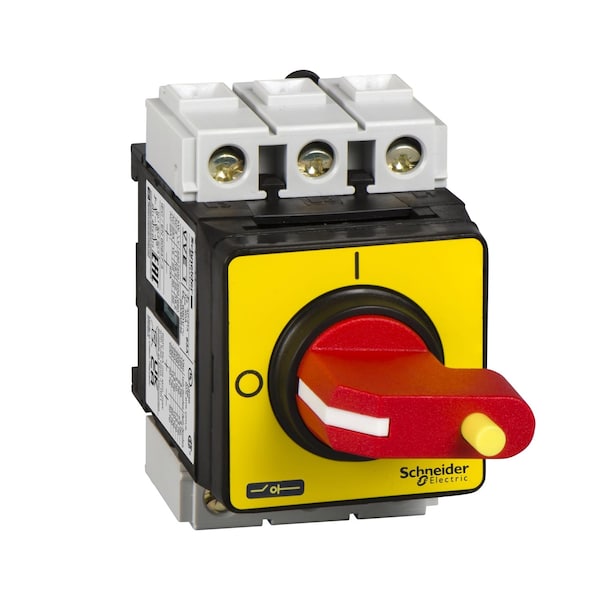

Interruptor seccionador, TeSys Control, para ENCENDIDO/paro de emergencia, 40A, para montaje en la parte posterior de un gabinete.
| Depth | 106 mm |
|---|---|
| Height | 74 mm |
| Item | 25Amp Sw Kit W/Red/Yellow Operattached |
| Width | 55 mm |
| Standards | IEC 60947-3 |
| Product Or Component Type | emergency stop switch disconnector |
| [Icw] Rated Short-Time Withstand Current | 480 A 400 V 1 s |
| Electrical Durability | 100000 cycles AC-21 || 30000 cycles DC-1 to 5 |
| [Icm] Rated Short-Circuit Making Capacity | 1 kA 400 V at Ipeak |
| Poles Description | 3P |
| Product Certifications | UL || GL || CSA || UKCA |
| Fire Resistance | 960°C IEC 60695-2-1 |
| Rated Operational Power In W | 11 kW 690 V AC-3) || 15 kW 690 V AC-23A) || 11 kW 400 to 415 V AC-3) || 15 kW 500 V AC-3) || 18.5 kW 500 V AC-23A) || 5.5 kW 230 to 240 V AC-3) || 7.5 kW 230 to 240 V AC-23A) || 15 kW 400 to 415 V AC-23A) |
| Marking | 0 - 1 |
| Tightening Torque | power circuit 2.1-2.1 N.m screw clamp terminals |
| Contacts Type And Composition | 3 NO |
| Control Type | rotary handle |
| Protective Treatment | TC |
| Device Short Name | VVE |
| Ip Degree Of Protection | IP65 || IP65 conforming to IEC 60529 |
| Making Capacity | 400 A 400 V AC-21A || 400 A 400 V AC-22A || 400 A 400 V AC-23A |
| Mounting Support | switch symmetrical rail || switch plate |
| Fixing Mode | by clips switch || by screws switch |
| Performance Level | high performance |
| Handle Colour | red |
| [Ith] Conventional Free Air Thermal Current | 40 A |
| Compatibility Code | main switch disconnector |
| Network Type | AC || DC |
| Mechanical Robustness | vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Intermittent Duty Class | 30 |
| Mechanical Durability | 100,000 cycle |
| Rated Conditional Short-Circuit Current | 10 kA 400 V 50 A aM || 10 kA 400 V 50 A gG |
| Device Composition | switch || handle |
| Suitability For Isolation | yes |
| Rotary Handle Padlocking | 1 padlock 4-6 mm |
| Range | TeSys |
| [Ie] Rated Operational Current | 29 A AC-23 Ue: 400 V |
| Base Dimension | 45 mm x 45 mm |
| Connections - Terminals | power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end |
| Breaking Capacity | 320 A 400 V AC-21A) || 320 A 400 V AC-22A) || 320 A 400 V AC-23A) |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | -20-50°C |
| Product Name | TeSys VARIO |
| Rotary Handle Mounting Style | direct |
| [Ithe] Conventional Enclosed Thermal Current | 32 A |
| Handle Front Plate Colour | yellow |
| Degree Of Protection | IP65, IP65 conforming to IEC 60529 |
| Mounting Method | By clips switch; By screws switch |
| Iec Rated Operational Power in W | 11 kW 690 V AC-3); 15 kW 690 V AC-23A); 11 kW 400 to 415 V AC-3); 15 kW 500 V AC-3); 18.5 kW 500 V AC-23A); 5.5 kW 230 to 240 V AC-3); 7.5 kW 230 to 240 V AC-23A); 15 kW 400 to 415 V AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA 400 V 50 A aM; 10 kA 400 V 50 A gG |
| IEC Terminal Connection | Power circuit screw clamp terminals 0.02 in² (10 mm²) solid; Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end |
| Package Quantity | 1 |
