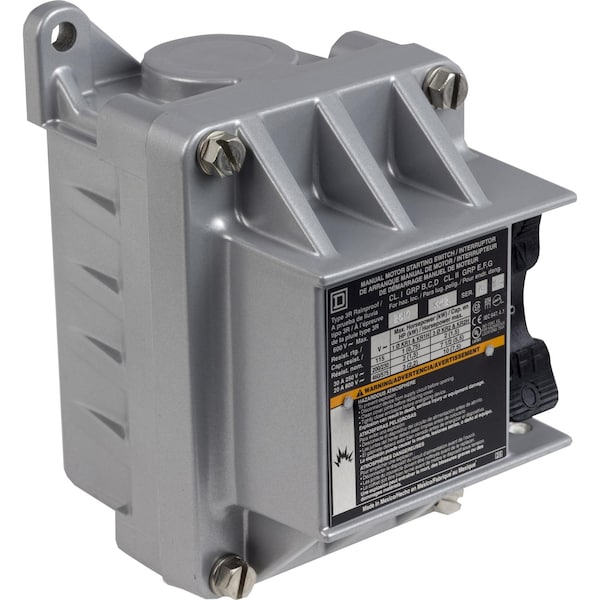

Interruptor, manual, 20A, 2 polos, 3 HP a 575 VAC, monofásico, operado por palanca, sin indicador, NEMA 7 & 9, con dos aberturas de conducto.
| Depth | 4.35 in |
|---|---|
| Height | 6.36 in |
| Item | Manual Switch 600Vac K+Options |
| Width | 3.95 in |
| Cable Entry | 0.75 NPT (top and bottom) |
| Awg Gauge | AWG 14 to AWG 10 copper |
| Line Rated Current | 30 A |
| Phase | 1 phase |
| Poles Description | 2P |
| Local Signalling | no indicator |
| Maximum Horse Power Rating | 2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC |
| Product Certifications | UL listed file E58760 CCN NPXZ || CSA LR26817 class 3218 04 |
| Electrical Connection | Screw Clamp Terminals |
| [Ue] Rated Operational Voltage | 600 V AC || 230 V DC |
| Control Type | toggle |
| Nema Degree Of Protection | NEMA 3R/7/9 Cast Aluminium standard size |
| Motor Starter Type | non reversing |
| Product Or Component Type | Single Unit Manual Switch |
| Pvc Free | Yes |
| Range of Product | K |
| Package Quantity | 1 |
