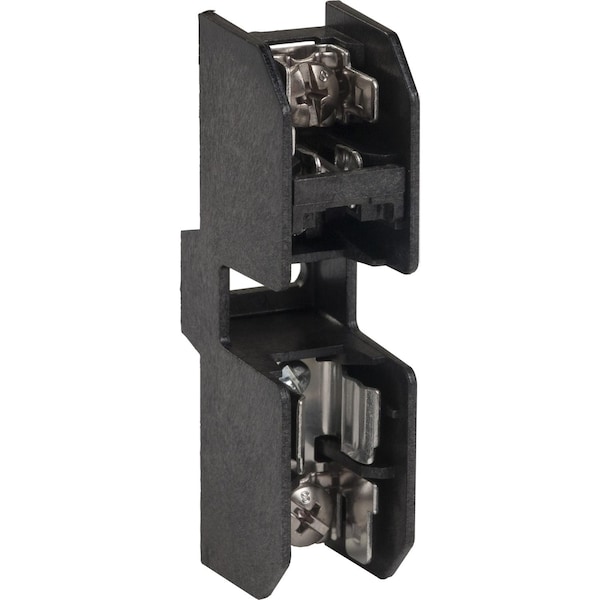

Bloque de terminales, Linergy, portafusibles, Clase CC, 30A, 600V, 1 polo.
| Item | Terminal Block Fuseholder 600V 30A Tfb |
|---|---|
| Number of Poles | 1 |
| Length | 7/16 in |
| Width | 0.85 in |
| Height | 3.13 in |
| Depth | 1.29 in |
| Material | thermoplastic: block |
| Standards | UL recognized E40747 CCN IZLT2, CSA file 70360 class 6225 01, CE |
| Connections - Terminals | screw terminals 25 lbf.in AWG 14...AWG 10 copper |
| Awg Gauge | AWG 14...AWG 10 copper or aluminium |
| Wire Stripping Length | 7/16 in |
| [Ue] Rated Operational Voltage | <= 600 V AC/DC |
| Ambient Air Temperature For Operation | -40-257°F |
| Fuse Type | CC |
| Range of Product | 9080FB |
| Electrical Connection | pressure wire clamp |
| Line Rated Current | 30 A |
| Fuse Size | 0.4063 in x 1-1/2 in |
| [Ics] Rated Service Breaking Capacity | 200 kA UL 512 |
| Mounting Support | surface mount |
| Product or Component Type | fuse holder |
| Product Certifications | UL recognized E40747 CCN IZLT2 || CSA file 70360 class 6225 01 || CE |
| Package Quantity | 1 |
