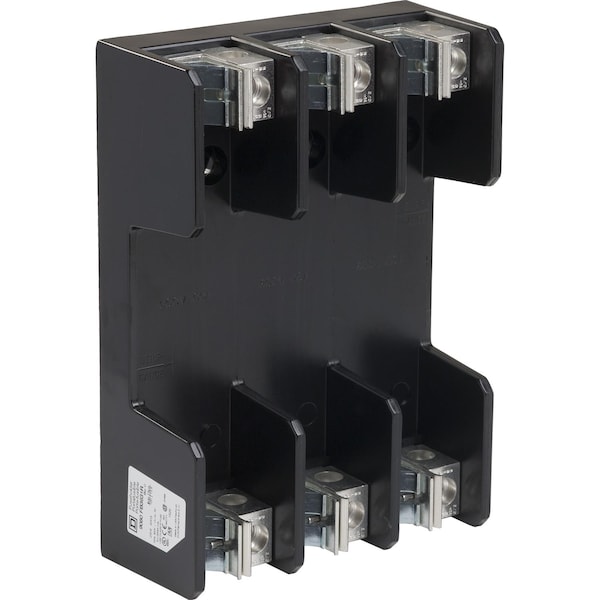

Terminal block, Linergy, fuse holder, Class R, 100A, 600 V, 3 pole
| Item | Terminal Block Fuseholder 600V 100A Tfb |
|---|---|
| Number of Poles | 3 |
| Standards | UL listed file E40747 CCN IZLT, CSA file 70360 class 6225 01, CE |
| Height | 8.12 in |
| Block Material | Phenolic: block |
| Width | 5.73 in |
| Material | phenolic: block |
| Length | 1-5/16 in |
| Depth | 2.6 in |
| Awg Gauge | AWG 6...AWG 2/0 copper or aluminium |
| Fuse Size | 1 in x 7-7/8 in |
| [Ics] Rated Service Breaking Capacity | 200 kA UL 512 |
| [Ue] Rated Operational Voltage | <= 600 V AC/DC |
| Line Rated Current | 100 A |
| Range of Product | 9080FB |
| Connections - Terminals | lugs 40 lbf.in AWG 8 copper or aluminium, lugs 35 lbf.in AWG 14 copper, lugs 120 lbf.in AWG 6...AWG 2/0 copper or aluminium, lugs 35 lbf.in AWG 12...AWG 10 copper or aluminium |
| Fuse Type | R |
| Mounting Support | surface mount |
| Ambient Air Temperature For Operation | -40-302°F |
| Wire Stripping Length | 1-5/16 in |
| Electrical Connection | box lugs |
| Product or Component Type | fuse holder |
| Terminal Tightening Torque | lugs 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium; lugs 35 lbf.in (3.95 N.m) AWG 14 copper; lugs 120 lbf.in (13.56 N.m) AWG 6 to AWG 2/0 copper or aluminium; lugs 35 lbf.in (3.95 N.m) AWG 12 to AWG 10 copper or aluminium |
| Product Certifications | UL listed file E40747 CCN IZLT || CSA file 70360 class 6225 01 || CE |
| Wire Gauge | AWG 6 to AWG 2/0 copper or aluminium |
| Rated Operational Voltage | Less than or Equal to 600 V AC/DC |
| Operating Temperature | -40 to 302°F |
| Package Quantity | 1 |
