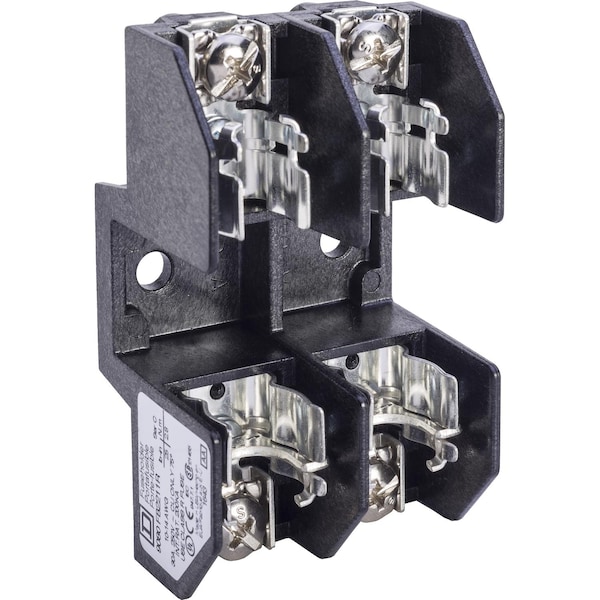

Bloque de terminales, Linergy, portafusibles, Clase R, 30A, 250V, 2 polos.
| Item | Terminal Block Fuseholder 250V 30A |
|---|---|
| Number of Poles | 2 |
| Material | thermoplastic block |
| Width | 1.91 in |
| Height | 3 in |
| Block Material | Thermoplastic: block |
| Depth | 1.38 in |
| Line Rated Current | 30 A |
| [Ue] Rated Operational Voltage | <= 250 V AC/DC |
| Ambient Air Temperature For Operation | -40-257°F |
| Product Certifications | CE || UL listed file E40747 CCN IZLT || CSA file 70360 class 6225 01 |
| Electrical Connection | pressure wire clamp |
| Fuse Type | R |
| Connections - Terminals | screw terminals 25 lbf.in AWG 14...AWG 10 copper |
| [Ics] Rated Service Breaking Capacity | 200 kA UL 512 |
| Awg Gauge | AWG 14...AWG 10 copper or aluminium |
| Wire Stripping Length | 7/16 in |
| Fuse Size | 9/16 in x 2 in |
| Product Or Component Type | fuse holder |
| Mounting Support | surface mount |
| Rated Operational Voltage | Less than or Equal to 250 V AC/DC |
| Operating Temperature | -40 to 257°F |
| Wire Gauge | AWG 14 to AWG 10 copper or aluminium |
| Terminal Tightening Torque | screw terminals 25 lbf.in (2.82 N.m) AWG 14 to AWG 10 copper |
| Range of Product | 9080FB |
| Package Quantity | 1 |
