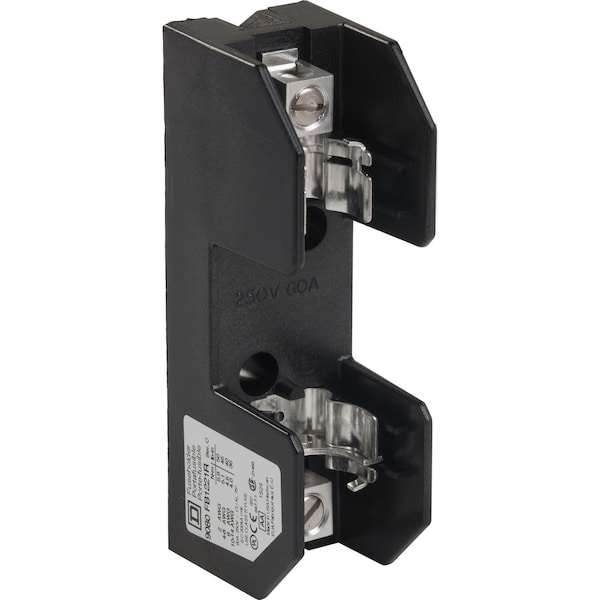

Bloque terminal, Linergy, portafusibles, Clase R, 60A, 250V, 1 polo.
| Item | Terminal Block Fuseholder 250V 60A Tfb |
|---|---|
| Number of Poles | 1 |
| Depth | 2.01 in |
| Material | thermoplastic block |
| Height | 4.83 in |
| Width | 1.48 in |
| Block Material | Thermoplastic: block |
| Fuse Size | 13/16 in x 3 in |
| Product Or Component Type | fuse holder |
| Product Certifications | CE || UL listed file E40747 CCN IZLT || CSA file 70360 class 6225 01 |
| [Ue] Rated Operational Voltage | <= 250 V AC/DC |
| Connections - Terminals | lugs 50 lbf.in AWG 3...AWG 2 copper or aluminium || lugs 45 lbf.in AWG 6...AWG 4 copper or aluminium || lugs 40 lbf.in AWG 8 copper or aluminium || lugs 35 lbf.in AWG 12...AWG10 copper or aluminium || lugs 35 lbf.in AWG 14 copper |
| Awg Gauge | AWG 14...AWG 2 copper or aluminium |
| Wire Stripping Length | 9/16 in |
| Line Rated Current | 60 A |
| Electrical Connection | box lugs |
| Ambient Air Temperature For Operation | -40-257°F |
| [Ics] Rated Service Breaking Capacity | 200 kA UL 512 |
| Fuse Type | R |
| Mounting Support | surface mount |
| Terminal Tightening Torque | lugs 50 lbf.in (5.65 N.m) AWG 3 to AWG 2 copper or aluminium; lugs 45 lbf.in (5.08 N.m) AWG 6 to AWG 4 copper or aluminium; lugs 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium; lugs 35 lbf.in (3.95 N.m) AWG 12 to AWG10 copper or aluminium; lugs 35 lbf.in (3.95 N.m) AWG 14 copper |
| Operating Temperature | -40 to 257°F |
| Wire Gauge | AWG 14 to AWG 2 copper or aluminium |
| Rated Operational Voltage | Less than or Equal to 250 V AC/DC |
| Range of Product | 9080FB |
| Package Quantity | 1 |
