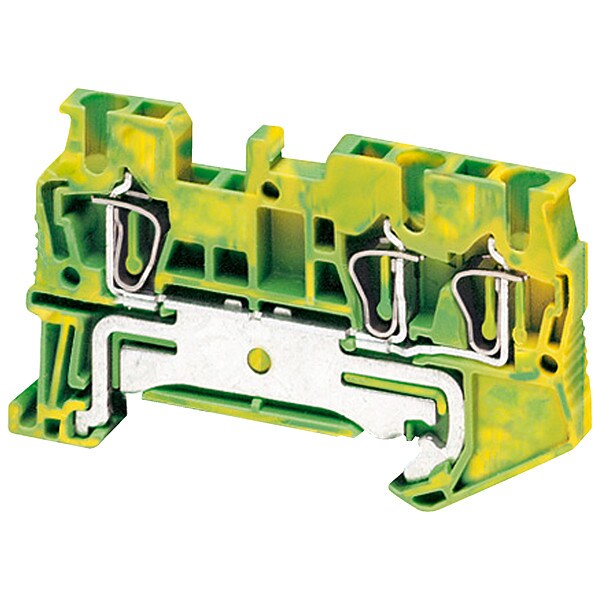

Bloques de terminales, 12 AWG, 12 AWG
| Item | Terminal Block |
|---|---|
| Number of Poles | 1 |
| Number of Connections | 3 |
| Width | 5.2 mm |
| Color | green-yellow |
| Height | 36.5 mm |
| Connection Type | Spring |
| Material | polyamide 6/6 insulating case |
| Length | 60.5 mm |
| Standards | ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR, VDE |
| For Minimum Wire Size | 28 AWG |
| Overall Length | 60.5 mm |
| Special Features | A Screw Driver is Used to Clamp this Block to the 35 mm Din Rail to Make the Ground Connection, Each Block is 1.44 in Tall/0.20 in Wide and 2.38 in Deep. Each Weighs 0.41 oz. the Blocks are Sold in Boxes of 50, The Blocks are UL Component Recognized and CSA Certified and Meet IEC Requirements, The Linergy Line of Terminal Blocks Offers a Wide Selection of Blocks and Accessories. Linergy Terminal Blocks have Push-In Type and Spring Type and Screw Type Terminal Blocks. This Green/Yellow Grounding Terminal Block has 3 Terminal Points, This Terminal Block has Spring Termination. the Terminals Will Accept Wires from 28 AWG to 12 AWG |
| Housing Color | Green, Yellow |
| Strip Length | 10 mm |
| For Maximum Wire Size | 12 AWG |
| Terminal Block Type | Grounding |
| Housing Material | Polyamide 6/6 |
| Number of Tiers | 1 |
| RoHS Compliant | Yes |
| Termination Style | Spring Terminals |
| Compatible with Product Type | Special Enclosures |
| Minimum Operating Temperature | -40 deg F |
| Overall Width | 5.2 mm |
| UL 94 Flammability Rating | V-0 |
| Overall Depth | 36.5 mm |
| Maximum Operating Temperature | 266 deg F |
| For Conductor Material | Not Applicable |
| Circuit Protection Type | None |
| For Fuse Diameter | Not Applicable |
| Current | 20 A |
| Maximum Voltage | 600 V |
| For Fuse Length | Not Applicable |
| For Conductor Type | Not Applicable |
| Connection Position | top |
| Flame Retardance | V0 0.8 mm UL 94 |
| Mounting Mode | clip-on |
| Product Compatibility | Spacial enclosures |
| Product Certifications | VDE || DNV || ATEX || LR || IEC-Ex || GL || cURus || EAC || CSA |
| Number Of Measurement Input | 2 |
| Connections - Terminals | 1 x spring terminal upstream || 2 x spring terminal downstream |
| Terminal Block Level | 1 |
| Range | Linergy |
| Wire Stripping Length | 10 mm |
| Range Compatibility | Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys |
| Nominal Cross Section | 2.5 mm² |
| Resistivity | 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30 |
| Cable Cross Section | 0.08-4 mm², solid || 0.2-2.5 mm², flexible with cable end || 0.08-2.5 mm², flexible without cable end |
| Surface Resistance | 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30 |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30 |
| Device Short Name | TRR |
| Number Of Terminals | 3 |
| Dielectric Constant | 3.7 at 1 MHz |
| Ambient Air Temperature For Operation | -40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21 |
| Tool Type | flat screwdriver |
| Product Name | Linergy TR |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Product Or Component Type | terminal block |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4 |
| Package Quantity | 1 |
