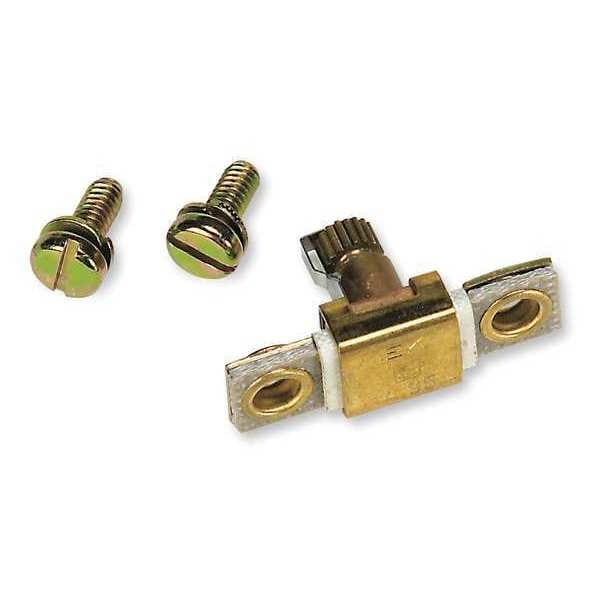

Unidad térmica, 4.08 a 4.32A
| Item | Thermal Unit |
|---|---|
| Full Load Amps | 4.08 to 4.32 |
| For Use With | Square D Motor Starters, Thermal Overload Relays |
| Sensing Method | Melting Alloy |
| Trip Class | 20 |
| Overload Protection Type | Melting Alloy |
| Compatible with Manufacturer Model Number | 2510FF1, 2510FF1P, 2510FF1PG, 2510FF2, 2510FG1, 2510FG1P, 2510FG1PG, 2510FG2, 2510FG2P, 2510FG5, 2510FG5P, 2510FG6, 2510FG6P, 2510FG71, 2510FG71P, 2510FG71PG, 2510FO1, 2510FO1P, 2510FO2, 2510FO2P |
| Full Load Current | 3.84 to 4.08 A, 3.93 to 4.2 A, 4.08 to 4.32 A, 4.09 to 4.38 A, 4.17 to 4.43 A, 4.28 to 4.59 A, 4.43 to 4.61 A, 4.52 to 4.83 A, 4.63 to 4.92 A |
| Frame Size | S, A |
| Motor Tripping Class | 20 |
| Thermal Overload Type | melting alloy |
| Package Quantity | 1 |
