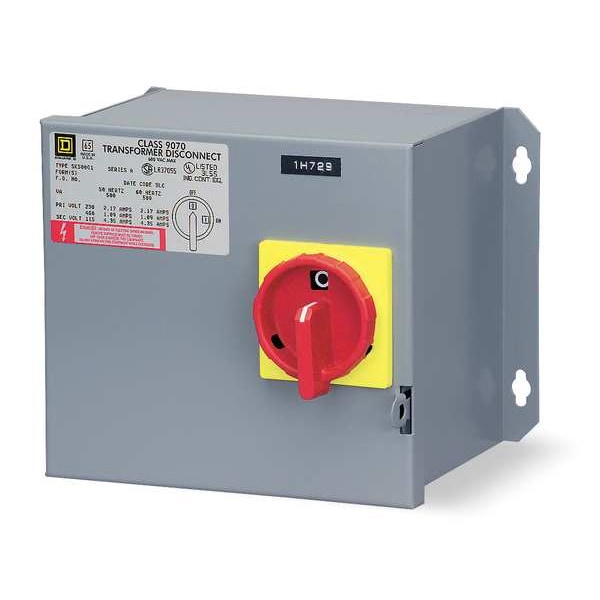

Transfrmr Disconnect, 500VA, 240/480V-120V
| Item | Transformer Disconnect |
|---|---|
| Voltage Rating | 120 Volt Secondary, 230 x 460 Volt Primary |
| Voltage Output | 120 V |
| Hz | 50/60 Hz |
| Power Rating | 500 VA |
| Input Voltage | 240 x 480V AC |
| Secondary Fuse Size (In.) | 1 1/2 x 13/32 |
| Short Circuit Current (KA) | 100 kA |
| Insulation Temperature | 180 DegC |
| Rated Power In Va | 500 VA |
| Secondary Voltage | 120 V |
| Electrical Connection | Screw Clamp Terminals |
| Nema Degree Of Protection | NEMA 1 standard |
| Primary Voltage | 240 x 480 V |
| Product Or Component Type | Transformer Disconnect |
| Product Certifications | CSA || UL Listed |
| Temperature Rise | 115 Degrees C |
| Phase | Single |
| Certifications | CSA; UL Listed |
| Type | SK |
| Standards | CSA Certified, EU ROHS, UL Listed |
| Overall Width | 11.8 in |
| Overall Height | 9.4 in |
| Frequency | 50/60 Hz |
| NEMA Enclosure Rating | 1 |
| Connection - Secondary | Screw Terminal |
| Output Voltage | 120 V AC |
| Short Circuit Current | 100 kA |
| Overall Depth | 9 in |
| Secondary Fuse Size | 1 1/2 in x 13/32 in |
| Operating Temperature - Maximum | 180 deg C |
| Connection - Primary | Screw Terminal |
| Manufacturers Warranty Length | 18 mo |
| Package Quantity | 1 |
