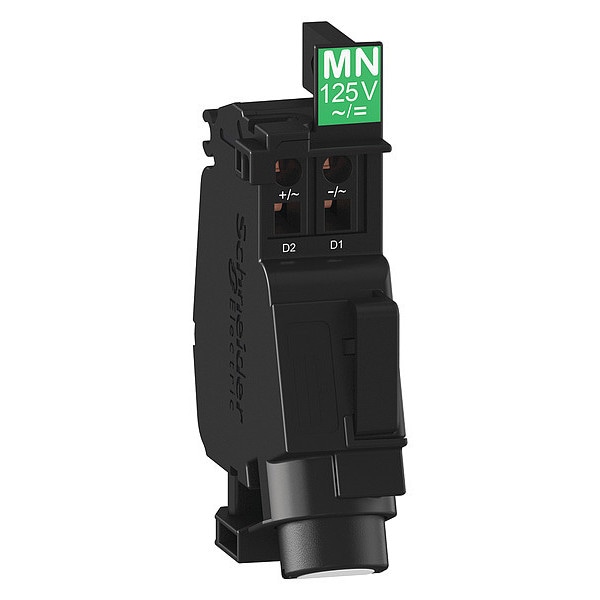

Libre de tensión, 110 a 130V AC/125V DC, 0 polos.
| Item | Undervoltage Release |
|---|---|
| Voltage | 110 to 130V AC/125V DC |
| Number of Poles | 0 |
| For Use With | PowerPact(R) B Circuit Breakers |
| Standards | CCC, EAC , IEC 60068-2-30, IEC/EN 60947-1 and -2 |
| Product Or Component Type | voltage release |
| Auxiliary Connection Terminal | spring |
| Device Short Name | MN |
| Range | ComPact |
| Voltage Release Type | opening coil || undervoltage release |
| Device Application | control |
| Range Compatibility | ComPact (ComPacT NSXm new generation) || ComPact (ComPact NSXm) || PowerPact (PowerPact B) |
| Response Time | < 50 ms |
| Control Type | standard |
| [Uc] Control Circuit Voltage | 110...130 V AC 50/60 Hz || 125 V DC |
| Threshold Tripping Voltage | 0.35...0.7 x Un opening || 0.85 x Un closing |
| Package Quantity | 1 |
