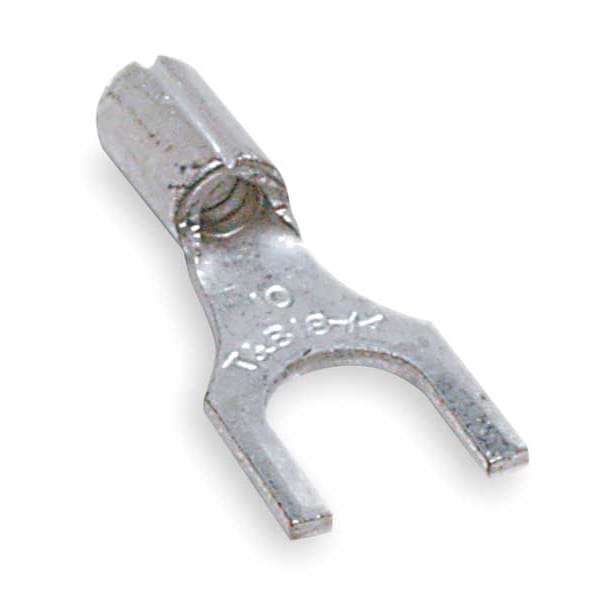

Terminal de horquilla sin aislamiento de 12-10 AWG para tornillo de tamaño #6, paquete de 50 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Connection Type | Crimp |
| Terminal Type | Standard |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.31 in |
| Terminal Connection | Crimp |
| Seam | Brazed |
| Connection Material | Copper |
| Standards | CSA Certified, UL Listed |
| Overall Length | 0.77 in |
| Item | Fork Terminal |
| Features | These non-insulated fork terminals are made of electrolytic copper for high conductivity.; They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).; Serrated barrel increases grip on wire.; Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002; Alternate Package Qty: C133 |
| Minimum Wire Size | 12 AWG |
| Barrel Length | 0.36 in |
| Maximum Wire Size | 10 AWG |
| Special Features | Can be Installed With Crimping Tools Having a Single Indentor or Double Indentor (Recommended for Solid Wire), Serrated Barrel Increases Grip on Wire, These Non-Insulated Fork Terminals are Made of Electrolytic Copper for High Conductivity |
| Contact Finish | Tin |
| Insulation Coverage | None |
| Tongue Width | 0.31 in |
| Compatible Manufacturer Model Number | ERG4002, WT110M, WT111M, WT112M, WT2000 |
| Compatible with Product Type | Crimper, Ratchet Crimper |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Contact Material | Copper |
| Maximum Operating Temperature | 221 deg F |
| Barrel Style | Serrated Barrel |
| Tongue Length | 0.00 - 0.50 inches |
| Compatible with Series | C133 |
| Terminal Shape | Fork |
| RoHS Compliant | No |
| Seam Style | Brazed |
| Insulation Material | None |
| Standard | UL E9809 |
| Surface protection | Tinned |
| Stud size (imperial) | 6 |
| Type | Non-Insulated Fork Terminal |
| Wire Size | 12-10 AWG |
| Color | Metallic |
| AWG-range | 12 to 10 |
| Flange shape | Fork shape |
| Package Quantity | 50 |
